Same model may have multiple batches, images only for reference.

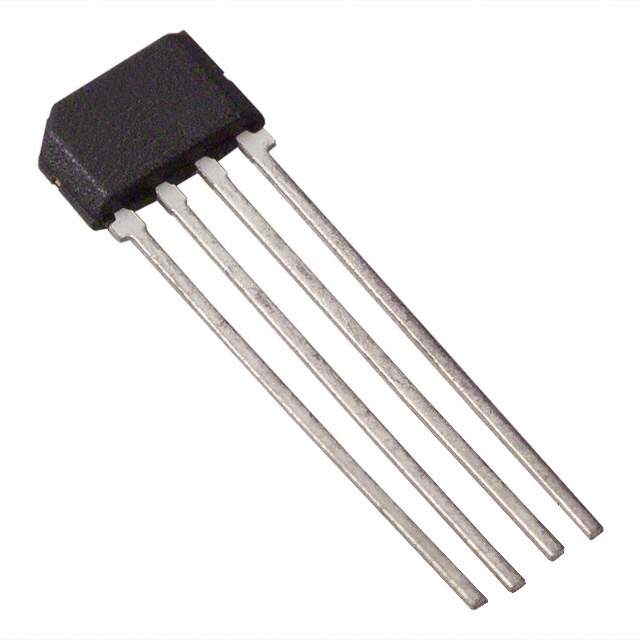

MLX91209LVA-CAA-000-CR Real Image
Same model may have multiple batches, images only for reference.

MLX91209LVA-CAA-000-CR

Part No MLX91209LVA-CAA-000-CR
Manufacturer Melexis Technologies NV
Catalog Current Transducers
Description SENSOR CURRENT HALL 45MT AC/DC / Current Sensor 45mT 1 Channel Hall Effect, Open Loop Bidirectional 4-SSIP Module
Datasheet
MLX91209LVA-CAA-000-CR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Manufacturer Melexis Technologies NV
Packaging Reel - TR
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 45mT
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 50mV/mT
Frequency DC ~ 200kHz
Linearity ±0.4%
Accuracy ±0.1%
Voltage - Supply 5V
Response Time 4µs
Current - Supply (Max) 14mA
Temperature Range - Operating -40°C ~ 125°C
Polarization Bidirectional
Mounting Through Hole
Case / Package 4-SSIP Module
Supplier Device Package 4-SIP
Base Product Number MLX91209
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,500
Win Source Part Number 1336601-MLX91209LVA-CAA-000-CR
Ultra Librarian 3D Model Ultra Librarian MLX91209LVA-CAA-000-CR CAD Model

Description

The Melexis Technologies NV current sensor is a ratiometric, voltage output sensor that has a bidirectional polarization.

  • Package: 4-SIP module
  • Frequency: DC ~ 200kHz
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Through-Hole
  • Sensitivity: 50mV/mT
  • Measuring Type: AC/DC
