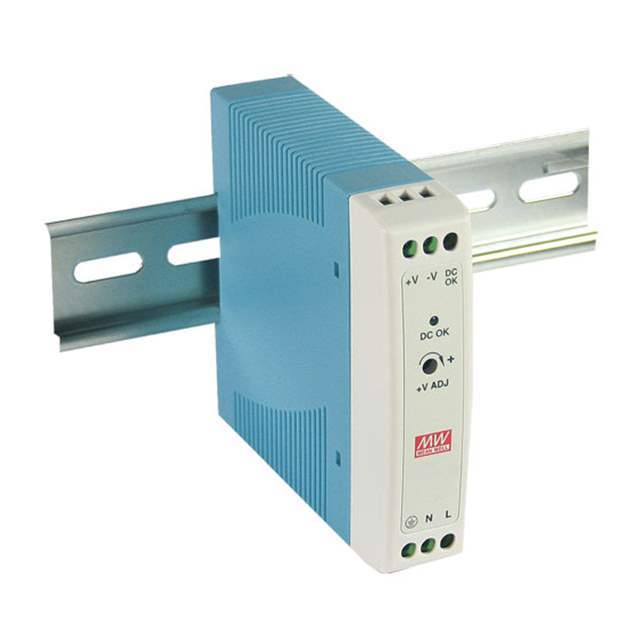

MDR-20-12 MEAN WELL USA Inc.
Same model may have multiple batches, images only for reference.

MDR-20-12

Part No MDR-20-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Industrial, DIN Rail Power Supplies
Description AC/DC DIN RAIL SUPPLY 12V 20W
Datasheet
MDR-20-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer MEAN WELL USA Inc.
Category Power Supplies - External/Internal (Off-Board) > Industrial, DIN Rail Power Supplies
Packaging Box
Part Status Active
Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 85 ~ 264 VAC
DC Voltage - Input (Min) 120V
DC Voltage - Input (Max) 370V
Voltage - Output 1 12V
Ultra Librarian 3D Model Ultra Librarian MDR-20-12 CAD Model

Description

Features:

• Universal AC input/Full range

• Protections: Short circuit / Overload / Over voltage

• Cooling by free air convection

• Can be installed on DIN rail TS-35/7.5or 15

• Built in DC OK active signal

• LED indicator for power on

• No load power consumption<0.75W
