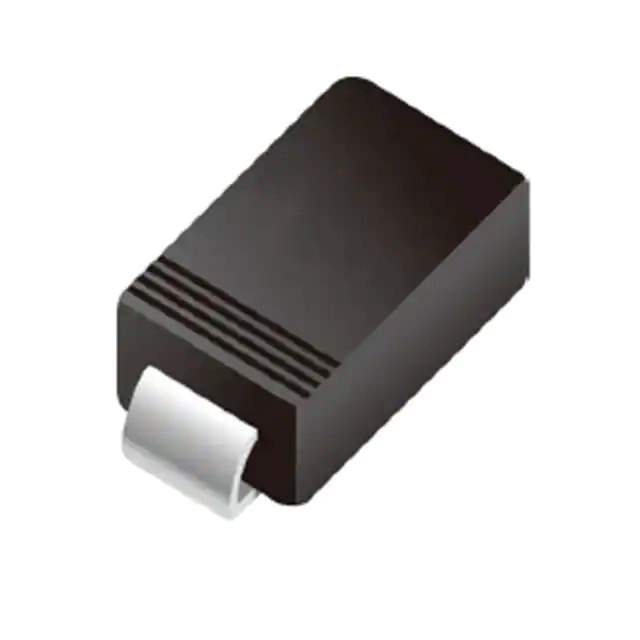

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr MDD
Series SMA
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 150 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 676228-SS1150
Ultra Librarian 3D Model Ultra Librarian SS1150 CAD Model

Description

The 676228-SS1150 is a single diode used in rectifier applications.

  • Series: It is part of the SMA series in the category of discrete semiconductor products.
  • Type: This fast recovery diode comes in a tape & reel package and has a standard package of 10,000 pieces.
  • Diode Type: It is a Schottky diode.
  • Maximum DC Reverse Voltage: with a maximum DC reverse voltage of 150V.
  • Average Rectified Current: The average rectified current is 1A.
  • Reverse Leakage Current: and the reverse leakage current @ the maximum reverse voltage is 100μA.
  • Capacitance: The diode has a capacitance of 80pF @ 4V and 1MHz frequency.
  • Operating Temperature Range: It can operate in a junction temperature range of -55°C to 150°C.
  • Mounting Type: It is surface mountable and has a package/case type of DO-214AC, SMA.
  • Supplier Device Package: The supplier device package is SMA.
  • MSL Level: The MSL level is 1 (Unlimited).
  • REACH Status: and the REACH status is unaffected.
  • HTSUS Code: The HTSUS code for this diode is 8542.39.0001.
  • Manufacturer: It is manufactured by MDD and is currently active.
