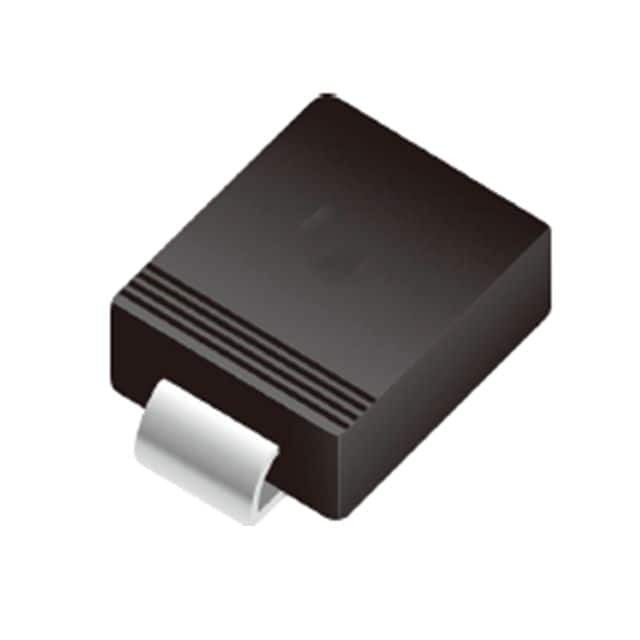

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr MDD
Series SMC
Package Tape & Reel (TR)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 100 V
Capacitance @ Vr, F 500pF @ 4V, 1MHz
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 3372-SK1010CTR,SMCSK1010S1010
Standard Package 3,000
Win Source Part Number 1022741-SK1010C
Ultra Librarian 3D Model Ultra Librarian SK1010C CAD Model

Description

The MDD SMC series Schottky diode electronic component is an obsolete product with a maximum DC reverse voltage of 100V and an average rectified current of 10A.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 10A
  • Forward Voltage: 850mV @ 10A
  • Reverse Leakage Current: 1mA @ 100V
  • Package Type: Tape and Reel
  • Capacitance @ Vr, F: 500pF @ 4V, 1MHz
  • Status: Obsolete
