Products specifications

Categories Integrated Circuits
Manufacturer Maxim Integrated
Packaging Reel - TR
Status Obsolete(EOL)
Type Class AB
Output Type Headphones, 2-Channel (Stereo)
Max Output Power x Channels @ Load 50mW x 2 @ 32 Ohm
Supply Voltage - Operating 1.8 V to 3.6 V
Features Depop, Short-Circuit and Thermal Protection, Shutdown
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-UCSP (2x2)
Dimension 16-WFBGA, CSPBGA
Win Source Part Number 074195-MAX9720AEBE+T
Ultra Librarian 3D Model Ultra Librarian MAX9720AEBE+T CAD Model

Description

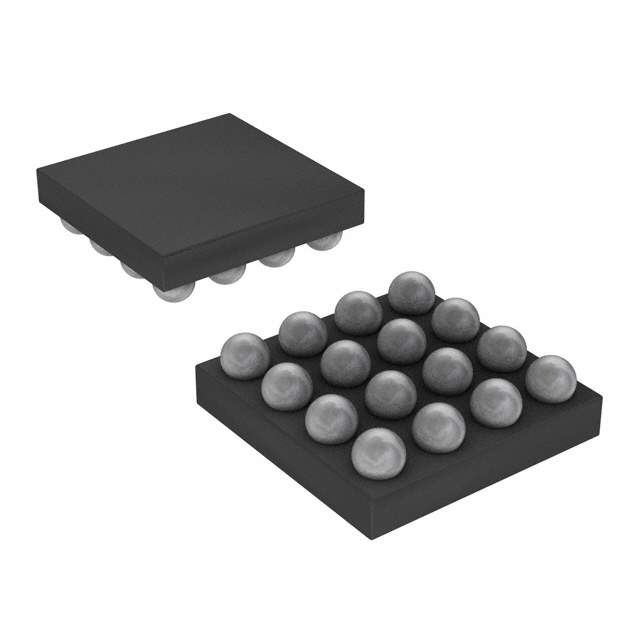

Maxim Integrated MAX9720AEBE+T Audio Amplifier

The MAX9720AEBE+T from Maxim Integrated is a high-performance, DirectDrive®, stereo headphone amplifier that provides a superior listening experience for audio enthusiasts. This compact and efficient integrated circuit is designed to deliver high-quality sound with low distortion and noise, making it an ideal choice for portable audio devices, laptops, and other applications where space and power consumption are critical considerations.

Key Features:

  • DirectDrive Technology: The MAX9720AEBE+T utilizes Maxim's proprietary DirectDrive technology, which eliminates the need for bulky DC-blocking capacitors, thus saving space and improving bass response.
  • High Output Power: Capable of delivering 130mW per channel into a 16Ω load, this amplifier can drive a wide range of headphones with ease.
  • Low Distortion: With a Total Harmonic Distortion plus Noise (THD+N) of just 0.004%, it ensures crystal-clear audio reproduction.
  • Low Power Consumption: The device features a low quiescent current, which extends battery life in portable applications.
  • Click-and-Pop Suppression: This feature minimizes audible clicks and pops during startup and shutdown, providing a smoother user experience.
  • Flexible Supply Voltage: The MAX9720AEBE+T operates from a single 2.7V to 5.5V supply, making it versatile for use in various system designs.
  • Thermal Overload Protection: The built-in thermal overload protection ensures that the device and your equipment are safeguarded against overheating.

Applications:

  • Portable Audio Devices
  • Smartphones and Tablets
  • Laptop and Desktop Computers
  • Portable DVD Players
  • Gaming Devices

The MAX9720AEBE+T comes in a compact 16-pin QSOP package, which is ideal for space-constrained applications. Its excellent audio performance and power efficiency make it a top choice for designers looking to enhance the audio quality of their products without compromising on size or battery life. With its robust feature set and Maxim Integrated's reputation for quality, the MAX9720AEBE+T stands out as a premier solution for portable audio amplification needs.
