Products specifications

Categories Integrated Circuits
Manufacturer Maxim Integrated
Packaging Tube
Status Obsolete
Applications Reconstruction Filter
Supply Current 3.1mA
Current - Output / Channel 81mA
Supply Voltage , Single/Dual (±) 1.7V ~ 2.63V
Mounting Style SMD

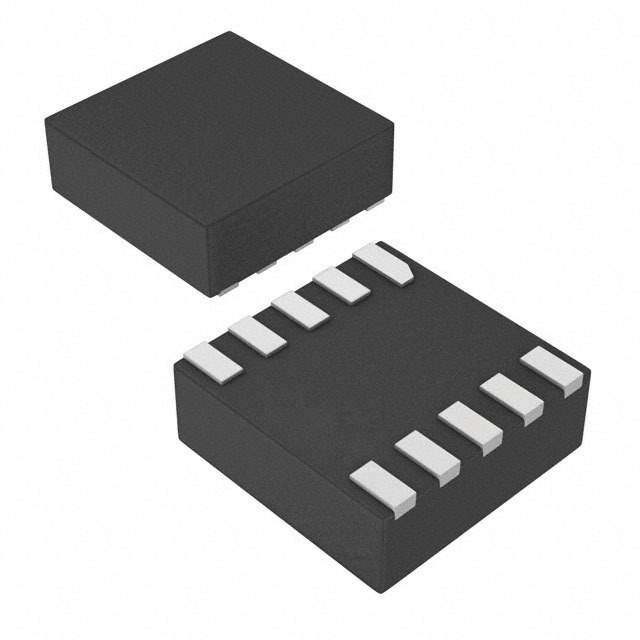

Manufacturer Package 10-WFDFN
Supplier Device Package 10-uDFN (2x2)
Family Part Number MAX9516
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 707411-MAX9516ALB+
Series MAX series
Popularity Low
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MAX9516ALB+ CAD Model

Description

Maxim Integrated MAX9516ALB+ Video Amplifier

The MAX9516ALB+ from Maxim Integrated is a highly integrated and advanced video amplifier that offers a robust solution for video signal conditioning. Designed with the needs of modern video applications in mind, the MAX9516ALB+ is a perfect choice for enhancing video quality in various devices, including portable and fixed-location multimedia devices, security cameras, and video-enabled home entertainment systems.

This compact and power-efficient IC features a 2-channel filter that includes a triple video DAC (digital-to-analog converter) with reconstruction filters. The MAX9516ALB+ is capable of driving standard-definition (SD) signals on each channel, making it suitable for composite video applications. The high level of integration allows designers to minimize component count, thereby reducing space and cost in the overall design.

The device operates from a single 2.5V to 3.3V power supply, which makes it compatible with a wide range of digital systems. It also features an internal charge pump that generates the negative supply voltage, eliminating the need for external negative supply and simplifying the power supply design.

One of the key benefits of the MAX9516ALB+ is its low-power consumption, which is particularly important for battery-powered devices. The chip also includes power-saving modes, further extending the battery life of portable applications. Additionally, the MAX9516ALB+ boasts excellent video performance with low differential gain and phase error, ensuring a high-quality video output.

The MAX9516ALB+ comes in a compact 9-bump WLP (wafer-level package) that is designed for minimal footprint and low profile, making it an excellent choice for space-constrained applications. Furthermore, the device is specified for the extended -40°C to +85°C temperature range, ensuring reliable operation in a wide range of environmental conditions.

Overall, the Maxim Integrated MAX9516ALB+ video amplifier is a versatile and efficient solution for designers looking to improve video quality while maintaining a small form factor and low power consumption in their products.
