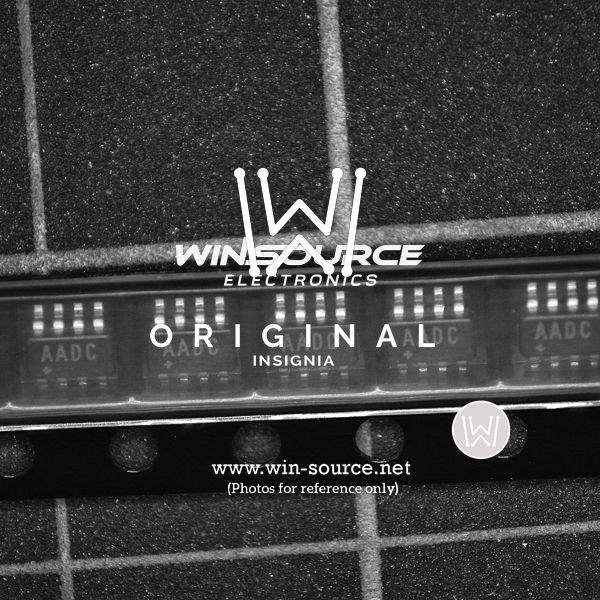

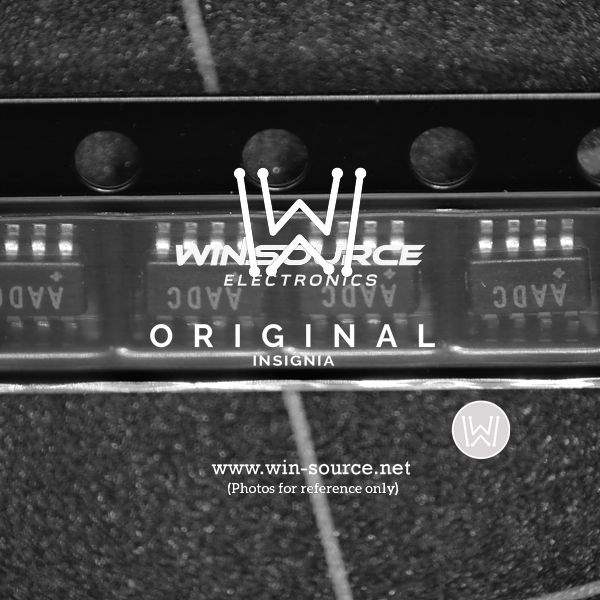

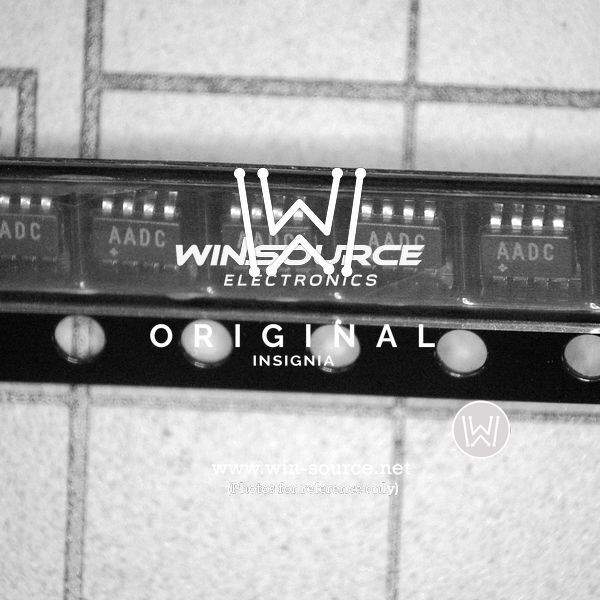

Product Overview: MAX6369KA+T from Maxim Integrated

The MAX6369KA+T is a robust, high-quality supervisory circuit designed by Maxim Integrated to monitor power supplies in microprocessor systems. This device provides a significant level of system reliability and precision, which is essential for applications requiring consistent performance and operational stability. The MAX6369KA+T ensures that microprocessors and other critical system components are reset properly during power-up, power-down, and brown-out conditions.

This supervisory circuit comes in a small, 8-pin SOT23 package, making it an ideal choice for space-constrained applications. Its compact form factor does not compromise its functionality or performance, as it is packed with features that cater to the needs of various systems requiring power monitoring and management.

Key Features

• Voltage Monitoring: The MAX6369KA+T monitors the system voltage and ensures that the microprocessor has a stable power supply, helping to prevent system errors and data corruption.
• Programmable Reset Timeout: It offers a programmable reset timeout, which allows designers to tailor the reset activation period according to the specific needs of their system.
• Manual Reset Input: An additional manual reset input provides an extra layer of control, allowing for a system reset to be triggered manually when needed.
• Low Power Consumption: With its low power consumption, this device is suitable for battery-operated applications, contributing to longer battery life and reduced power costs.
• High Accuracy: The MAX6369KA+T features high reset threshold accuracy, which ensures reliable operation under varying conditions and temperatures.

Applications

The MAX6369KA+T is versatile and can be used in a wide array of applications, including:

• Computers and Servers
• Embedded Systems
• Portable/Battery-Powered Equipment
• Industrial Controllers
• Communication Devices

In summary, the MAX6369KA+T from Maxim Integrated is a powerful supervisory circuit that offers enhanced system stability with its precise voltage monitoring and reset functionalities. Its programmability, low power consumption, and high accuracy make it a reliable and efficient solution for maintaining the integrity of microprocessor systems across various industries and applications.
