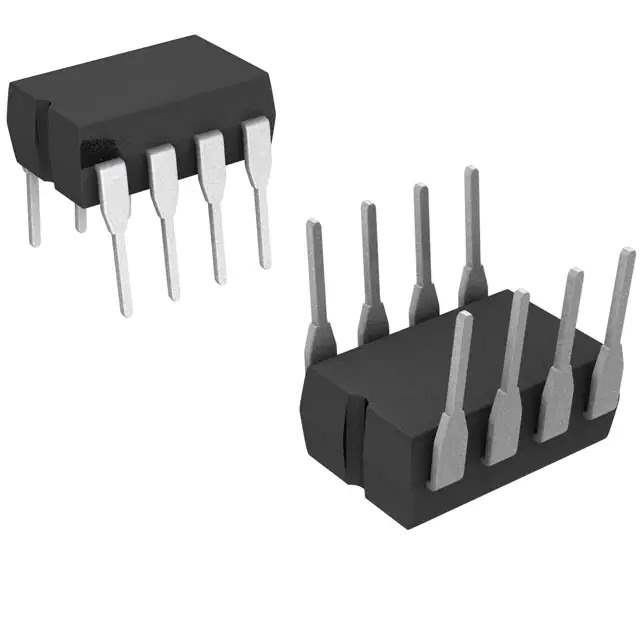

MAX485MJA RS-485/RS-422 Transceiver from Maxim Integrated

The MAX485MJA is a high-performance, low-power, bi-directional transceiver designed by Maxim Integrated for RS-485 and RS-422 communication networks. This device is specifically engineered to operate in harsh industrial environments, providing reliable data transmission over long distances and in electrically noisy surroundings.

Encased in a robust metal can package, the MAX485MJA ensures enhanced protection against electromagnetic interference, which is critical for maintaining signal integrity in industrial applications. Its compact size and footprint make it an ideal choice for space-constrained applications, while its extended temperature range ensures operation in extreme conditions.

Key Features

• Electrical Interface: Compatible with RS-485 and RS-422 standards, the MAX485MJA supports multi-point communication networks, allowing up to 32 devices to communicate through the same data line.
• Low Power Consumption: With its low quiescent current, the device is suitable for power-sensitive applications, helping to extend the life of battery-powered systems.
• High Data Rates: The transceiver is capable of data rates up to 2.5Mbps, making it suitable for high-speed data communication.
• Extended Temperature Range: The MAX485MJA operates reliably across a wide temperature range from -55°C to +125°C, accommodating the demands of harsh industrial environments.
• Fail-Safe Receiver: It features a fail-safe receiver that ensures a logic-high receiver output when the receiver inputs are open or shorted, or when they are connected to a terminated transmission line with all drivers disabled.

Applications

The MAX485MJA is versatile and can be used in various applications, including:

• Industrial Control Systems
• Building Automation
• Networked Security Systems
• Data Acquisition Systems
• Remote Sensors

Maxim Integrated's commitment to quality and reliability is evident in the MAX485MJA transceiver, making it a preferred choice for engineers and designers looking for a robust communication solution in industrial and automation applications.
