Maxim Integrated MAX4420MJA/883B High-Speed MOSFET Driver

The MAX4420MJA/883B is a high-performance, single-channel MOSFET driver from Maxim Integrated, designed to provide fast switching speeds for power MOSFETs and IGBTs. This robust driver is capable of delivering peak currents up to 6A, making it an ideal choice for high-speed applications such as switching power supplies, motor controllers, and pulse-width modulation (PWM) circuits.

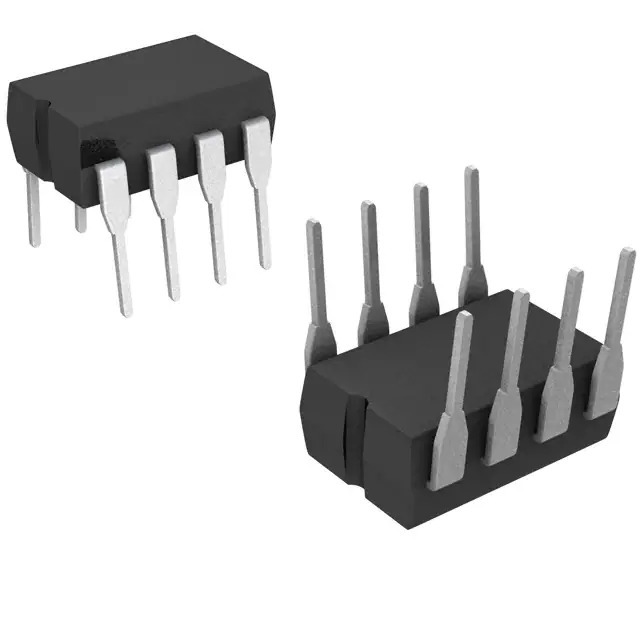

With its industry-standard 8-pin CERDIP package, the MAX4420MJA/883B offers a compact solution for systems where space is at a premium. The driver operates from a single 4.5V to 18V supply, providing designers with flexibility in various supply voltage applications. Its low input current requirements allow direct interfacing with CMOS or LSTTL logic, ensuring seamless integration with digital control circuits.

The device features a fast propagation delay of typically 25ns, which minimizes transition times and reduces power dissipation during switching events. Additionally, the MAX4420MJA/883B is designed with protection features such as latch-up immunity and an output that can withstand negative voltage transients, enhancing the reliability and longevity of the end application.

Key Features:

• High Peak Output Current: 6A
• Wide Supply Voltage Range: 4.5V to 18V
• Fast Propagation Delays: 25ns typical
• Low Input Current: Compatible with CMOS and LSTTL
• Latch-Up Immunity
• Negative Output Voltage Transient Protection
• Industry-Standard 8-Pin CERDIP Package

Applications for the MAX4420MJA/883B include high-speed switching in power conversion and management systems, driving power MOSFETs in H-bridge configurations for motor control, and as a high-current buffer or driver for pulse generators and other high-speed digital circuits.

Maxim Integrated's commitment to quality ensures that the MAX4420MJA/883B meets the stringent requirements of military-grade components. Its robustness and reliability make it an excellent choice for mission-critical applications where performance and durability are paramount.

Overall, the MAX4420MJA/883B MOSFET driver combines high-speed operation, ease of use, and reliability, making it a versatile component for designers looking to optimize the performance of their power switching applications.
