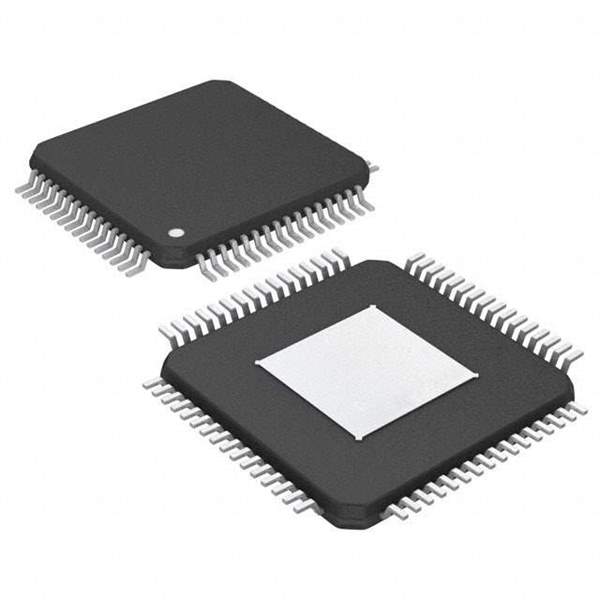

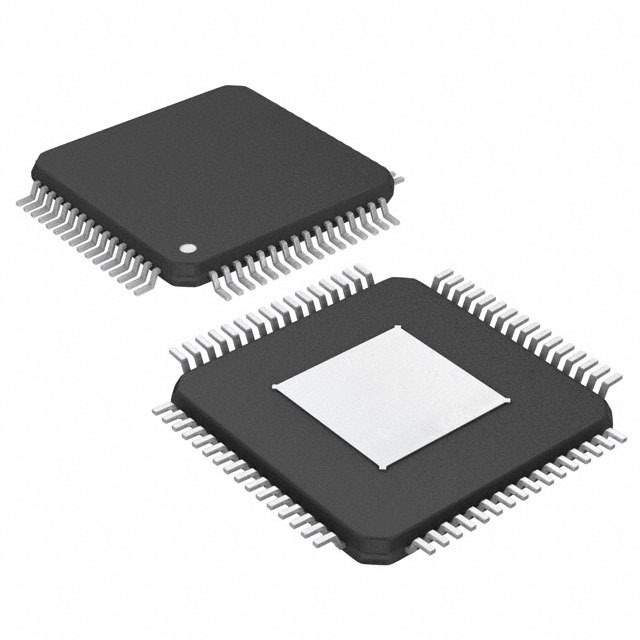

Maxim Integrated MAX3890ECB+TD Product Overview

The MAX3890ECB+TD from Maxim Integrated is a high-performance, 10.7Gbps 16:1 serializer integrated circuit (IC) designed for applications that demand high-speed data transmission. This device is particularly suitable for networking and telecommunication systems where bandwidth and signal integrity are critical. The MAX3890ECB+TD is engineered to serialize 16 parallel data inputs into a single high-speed serial output, streamlining the design of high-speed communication links.

One of the key features of the MAX3890ECB+TD is its support for data rates up to 10.7Gbps, enabling it to handle the demands of next-generation high-speed interfaces. This makes the device ideal for use in systems such as SONET/SDH, Ethernet, Fiber Channel, and other high-speed data communication protocols.

The MAX3890ECB+TD offers a differential PECL data interface for the high-speed output, providing robust signal integrity and minimizing signal degradation over long distances. The parallel inputs are LVCMOS/LVTTL compatible, allowing for easy integration with a wide range of digital systems and logic levels. Additionally, the IC features an on-chip PLL (Phase-Locked Loop) that multiplies the input clock to the desired output data rate, simplifying the design of clock management systems.

This serializer IC also includes a loss of signal (LOS) detection feature, which provides a flag indicating when the input data signal is absent or below a certain threshold. This is particularly useful for fault detection and system monitoring. Furthermore, the MAX3890ECB+TD has programmable output amplitude and pre-emphasis, allowing designers to optimize the signal characteristics for specific transmission lines and backplane environments.

Encased in a compact 64-TQFP-EP (Thin Quad Flat Pack with Exposed Pad) package, the MAX3890ECB+TD is designed for surface-mount technology (SMT), offering a space-saving solution for densely packed circuit boards. Its exposed pad assists with thermal management, ensuring reliable operation even under high-speed conditions.

With its combination of high data rate capability, signal integrity features, and ease of integration, the MAX3890ECB+TD from Maxim Integrated is a powerful choice for designers looking to implement high-speed serial data links in their products.
