Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Maxim Integrated
Part Status Obsolete(EOL)
Main Purpose Interface, Transceiver, RS-232
Embedded No
Utilized IC / Part MAX3232E
Supplied Contents Board(s)
Win Source Part Number 785902-MAX3232PMB1#
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MAX3232PMB1# CAD Model

Description

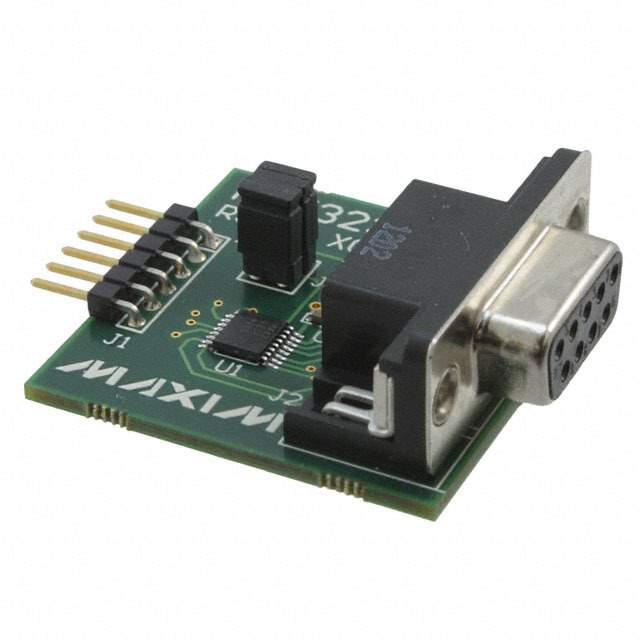

MAX3232PMB1# RS-232 Transceiver

The MAX3232PMB1# is a compact, highly integrated transceiver module from Maxim Integrated, designed to provide reliable RS-232 communication for a variety of applications. This transceiver is capable of running at data rates up to 250kbps, making it suitable for high-speed serial data exchange in industrial, commercial, and consumer products.

Key Features:

  • Interface Type: RS-232
  • Data Rate: Up to 250kbps
  • Supply Voltage: 3.0V to 5.5V
  • Low-Power Shutdown: Yes, with a receiver and transmitter disable function
  • ESD Protection: ±15kV Human Body Model (HBM)
  • Number of Drivers/Receivers: 2 drivers, 2 receivers
  • Temperature Range: -40°C to +85°C
  • Package: Plug-in module with a 9-pin D-sub connector

The MAX3232PMB1# is designed to be a durable and reliable solution for serial communication, featuring enhanced electrostatic discharge (ESD) protection of ±15kV using the Human Body Model, ensuring robustness in harsh environments. The module's wide supply voltage range from 3.0V to 5.5V offers flexibility for various power supply designs, and its low-power shutdown mode helps in conserving power when the device is inactive.

With its integrated charge pump circuitry, the MAX3232PMB1# module eliminates the need for additional components, simplifying the design and reducing the overall footprint on the PCB. The module comes in a convenient plug-in format with a standard 9-pin D-sub connector, making it easy to integrate into existing systems without the need for complex wiring or soldering.

The operational temperature range of -40°C to +85°C ensures that the transceiver can perform reliably in a wide range of environmental conditions, making it an ideal choice for applications in industrial automation, point-of-sale systems, peripherals, and portable electronics.

Overall, the MAX3232PMB1# RS-232 transceiver module from Maxim Integrated is a versatile and efficient solution for adding RS-232 connectivity to any application requiring reliable serial communication.
