Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 480mV @ 1.5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 12ns
Current - Reverse Leakage @ Vr 150μA @ 40V
Capacitance @ Vr, F 43pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SMINI2-F4-B-B
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1032657-DB2141200L
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DB2141200L CAD Model

Description

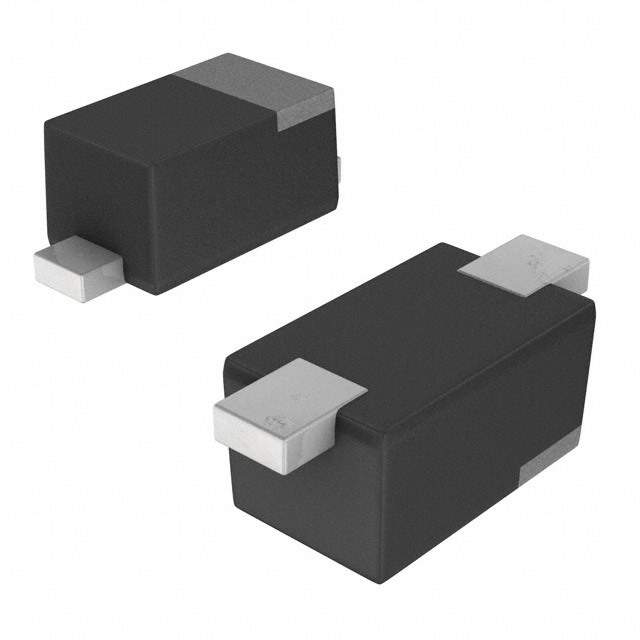

The Panasonic Electronic Components Schottky diode is a fast recovery diode with a voltage rating of 40V.

  • Voltage Rating: 40V
  • Average Rectified Current: 1.5A
  • Forward Voltage: 480mV @ 1.5A
  • Reverse Recovery Time: 12ns
  • Reverse Leakage Current: 150μA @ 40V
  • Capacitance: 43pF @ 10V and 1MHz
  • Maximum Junction Temperature: 150°C
  • Package: SMINI2-F4-B-B
