Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr Texas Instruments
Package Bulk
Type Interface
Function Sensor Signal Conditioner
Utilized IC / Part PGA305
Supplied Contents Board(s)
Base Product Number PGA305
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names 296-50671
Standard Package 1
Win Source Part Number 1031238-PGA305EVM-034
Ultra Librarian 3D Model Ultra Librarian PGA305EVM-034 CAD Model

Description

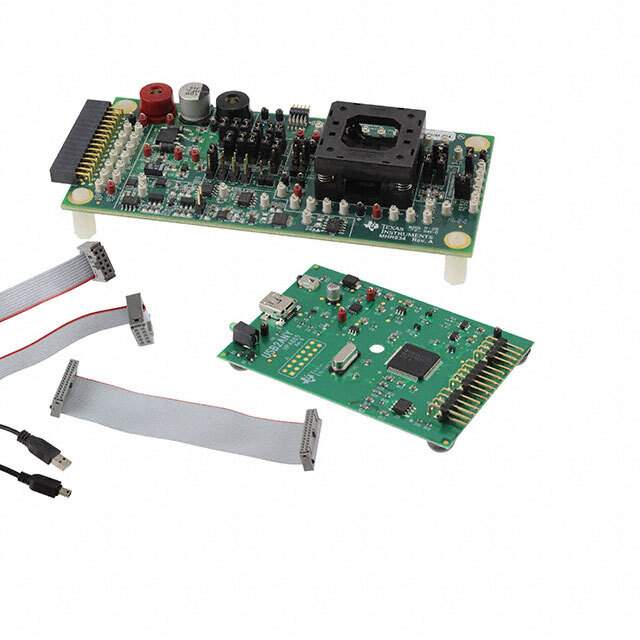

The PGA305EVM-034 is a comprehensive evaluation module designed by Texas Instruments to facilitate the testing and development of the PGA305, a programmable analog sensor signal conditioner. The PGA305 is tailored for pressure sensing and industrial process control applications, which require high-precision signal amplification and conditioning.

Key Features

  • Integrated ADC: The PGA305 includes a 24-bit delta-sigma analog-to-digital converter (ADC) for high-resolution data acquisition.
  • Programmable Gain: Users can configure the gain settings to match the sensitivity of various sensors, ensuring flexibility across different applications.
  • Temperature Compensation: The module features a temperature sensor for drift compensation, ensuring reliable performance under varying environmental conditions.
  • Digital Interface: The PGA305EVM-034 offers an SPI (Serial Peripheral Interface) for easy communication with microcontrollers and other digital systems.

Design and Development Support

The evaluation module includes all necessary hardware to directly connect to pressure sensors. It provides a platform for users to develop and debug their sensor systems with the PGA305. The EVM comes with a user-friendly GUI (Graphical User Interface) that allows for quick configuration of the device without the need for additional hardware or complex programming.

Applications

The PGA305EVM-034 is ideal for a wide range of applications, including:

  • Industrial pressure sensing
  • Process control systems
  • Factory automation
  • Flow meters
  • Level transmitters

Package Contents

The evaluation module package typically includes:

  • PGA305EVM-034 Evaluation Board
  • USB Cable for connection to a PC
  • Quick Start Guide
  • Access to software and documentation

Getting Started

To begin using the PGA305EVM-034, users should download the latest software and documentation from the Texas Instruments website. The Quick Start Guide provides straightforward instructions for setup and initial operation, enabling users to quickly begin evaluating the capabilities of the PGA305 sensor signal conditioner.
