Maxim Integrated MAX2667EWT+ Product Overview

The MAX2667EWT+ from Maxim Integrated is a high-performance, low-noise amplifier (LNA) designed for GPS, Galileo, and GLONASS satellite navigation systems. This advanced LNA is engineered to provide exceptional signal amplification while minimizing the noise figure, which is crucial for maintaining signal fidelity in navigation and positioning applications.

Key Features

• Frequency Range: The device operates over a wide frequency range, making it suitable for various global navigation satellite systems (GNSS).
• Low Noise Figure: With an outstanding low noise figure, the MAX2667EWT+ ensures a clean and clear signal, which is vital for accurate positioning.
• High Gain: It offers a high gain level, which boosts the weak signals received from satellites, thereby enhancing the overall system sensitivity.
• Integrated Filter: The LNA includes an integrated filter that helps in rejecting out-of-band interference, allowing for a cleaner signal reception.
• Power Management: It features a shutdown mode that significantly reduces the power consumption when the LNA is not in use, contributing to the energy efficiency of the overall system.

Applications

The MAX2667EWT+ is ideal for a range of applications that require precise navigation and positioning. These include:

• Automotive navigation systems
• Handheld GPS devices
• Marine and aviation navigation equipment
• Mobile phones with integrated GPS functionality
• Asset tracking and location-based services

Technical Specifications

Some of the technical specifications of the MAX2667EWT+ include:

• Supply Voltage Range: 1.6V to 3.3V
• Operating Temperature Range: -40°C to +85°C

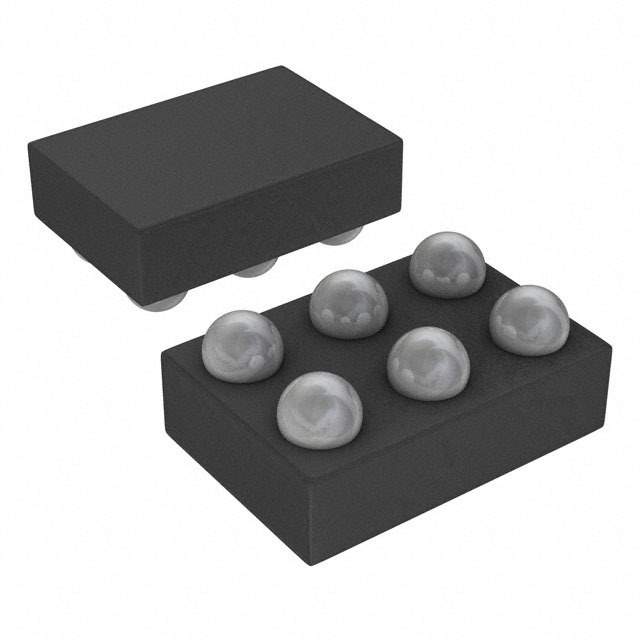

• Package: 6-pin WLP (Wafer-Level Package)

In summary, the MAX2667EWT+ LNA from Maxim Integrated stands out with its low-noise performance and high gain, making it an excellent choice for enhancing the signal quality in various GNSS receivers. Its integrated features and power efficiency make it a versatile solution for a wide array of navigation and positioning technologies.
