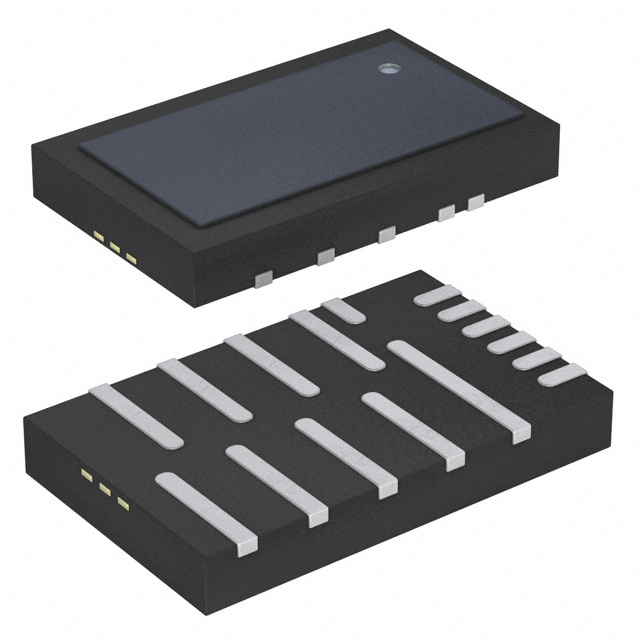

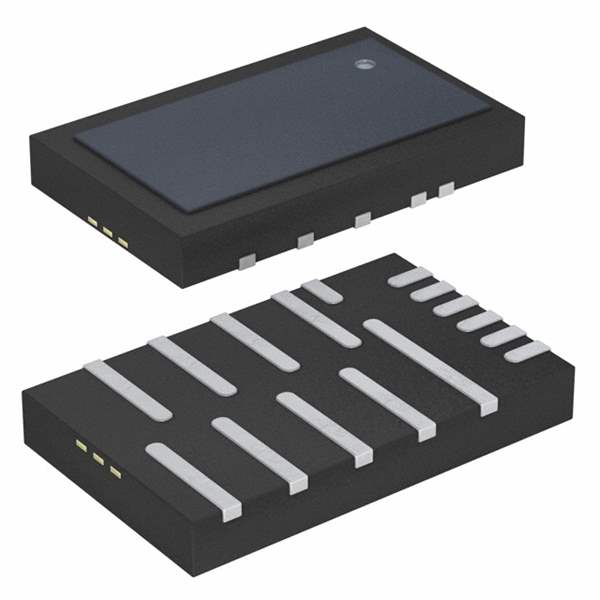

The MAX20766EPE+T from Maxim Integrated is a highly efficient, synchronous step-down DC-DC voltage regulator that is designed to deliver exceptional performance in a compact package. This voltage regulator is an ideal solution for powering high-performance FPGAs, DSPs, and microprocessors in space-constrained applications.

Key Features

• Input Voltage Range: The device supports a wide input voltage range from 4.5V to 16V, making it versatile for various applications and ensuring compatibility with a broad range of input sources.
• Output Voltage: The output voltage is adjustable from 0.5V to 5.5V, providing flexibility to meet the needs of different circuit designs and load requirements.
• High Efficiency: The MAX20766EPE+T is designed to offer high efficiency, which minimizes power loss and heat generation, thereby enhancing system reliability and performance.
• Integrated MOSFETs: It features integrated high-side and low-side MOSFETs, which reduces the number of external components required and simplifies the design process.
• Compact Package: The device comes in a space-saving 20-pin TQFN-EP (Exposed Pad) package that is suitable for compact designs where board space is at a premium.
• Thermal Management: The exposed pad design aids in thermal management, ensuring stable operation even under high load conditions.
• Protection Features: It includes a comprehensive set of protection features such as overcurrent protection, overvoltage protection, and thermal shutdown to safeguard the device and the system from various fault conditions.

Applications

The MAX20766EPE+T is designed for a variety of applications that require a high level of power efficiency and reliability. It is particularly well-suited for use in:

• Networking and telecommunications equipment
• Servers and data centers
• Portable and battery-powered devices
• Industrial control systems
• Medical equipment

In summary, the MAX20766EPE+T from Maxim Integrated is an advanced voltage regulator that offers a combination of high efficiency, flexible output voltage, and robust protection features, all encapsulated in a compact package ideal for modern electronic systems.
