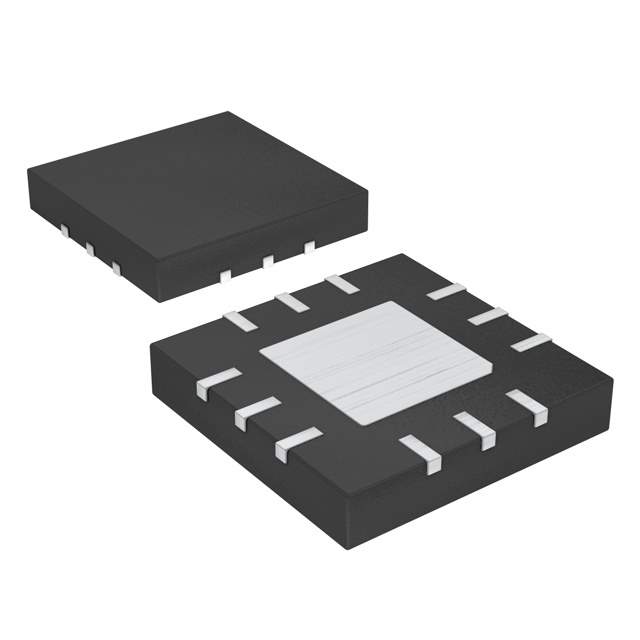

MAX1926ETC

Part No MAX1926ETC
Manufacturer Maxim Integrated
Catalog PMIC - Battery Chargers
Description SWITCH-MODE 1-CELL LI+ CHARGER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Battery Chargers
Mfr Maxim Integrated
Package Bulk
Product Status Active
Battery Chemistry Lithium Ion
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Features Current, Timer, Voltage
Fault Protection Over-Under Voltage, Reverse Battery
Charge Current - Max 100mA
Battery Pack Voltage 4.2V
Voltage - Supply (Max) 12V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 12-WQFN Exposed Pad
Supplier Device Package 12-TQFN (4x4)
Base Product Number MAX1926
Standard Package 108 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 829689-MAX1926ETC
Ultra Librarian 3D Model Ultra Librarian MAX1926ETC CAD Model

Description

Maxim Integrated MAX1926ETC Overview

The MAX1926ETC from Maxim Integrated is a high-performance, compact, step-down DC-DC converter designed to deliver a cost-effective and power-efficient solution for a wide range of applications. Its small form factor, combined with its high level of integration, makes it an ideal choice for space-constrained environments where efficient power conversion is critical.

Key Features

  • High Efficiency: With its advanced design, the MAX1926ETC provides an efficient power conversion, which helps in reducing the thermal footprint and improving the overall system performance.
  • Adjustable Output: The output voltage of the MAX1926ETC can be adjusted to meet the specific needs of the application, providing design flexibility.
  • Integrated Switches: This device includes internal power MOSFET switches which minimize the number of external components required, simplifying the design and saving board space.
  • Low Quiescent Current: It features a low quiescent current that extends battery life in portable applications, making it ideal for mobile and battery-operated devices.
  • Thermal Protection: The MAX1926ETC is equipped with thermal shutdown protection to safeguard the device and the system under extreme conditions.

Applications

The versatility of the MAX1926ETC makes it suitable for a variety of applications, including:

  • Portable and battery-powered devices
  • Wireless and telecommunications equipment
  • Consumer electronics
  • Embedded systems
  • Power supply modules

Technical Specifications

The MAX1926ETC operates over a wide input voltage range and offers a programmable switching frequency. Here are some of its technical highlights:

  • Input Voltage Range: 2.6V to 5.5V
  • Adjustable Output Voltage Range: 0.8V to VIN
  • Switching Frequency: Programmable up to 1MHz
  • Package: 12-Pin TDFN (3mm x 3mm)

In summary, Maxim Integrated's MAX1926ETC is a versatile, efficient, and space-saving step-down converter that is well-suited for a multitude of electronic applications where power efficiency and space are at a premium.
