Same model may have multiple batches, images only for reference.

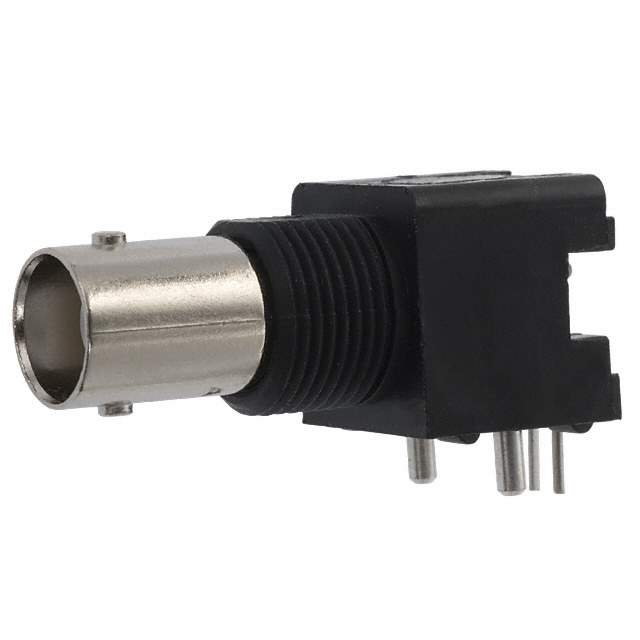

5227161-2 Real Image
Same model may have multiple batches, images only for reference.

5227161-2

Part No 5227161-2
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK R/A 50 OHM PCB
Datasheet
5227161-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Frequency - Max 4GHz
Features Board Guide, Isolated
Housing Color Black, Silver
Body Material Zinc
Body Finish Nickel
Center Contact Plating Tin
Dielectric Material Polymethylpentene (PMP)
Operating Temperature Range -55°C ~ 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 500V
Mating Cycles 500
Win Source Part Number 766690-5227161-2
Popularity Medium
Supply and Demand Status Limited
Family Name 5227161
Introduction Date May 30, 2007
ECCN EAR99
Country of Origin Mexico, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5227161-2 CAD Model

Description

The 5227161-2 is an electronic component manufactured by TE Connectivity AMP Connectors.

  • Connector Type: BNC
  • Gender: Female Socket
  • Fastening Type: Bayonet Lock
  • Voltage Rating: 500V
