Maxim Integrated's MAX1574ETB High-Efficiency, White-LED Driver

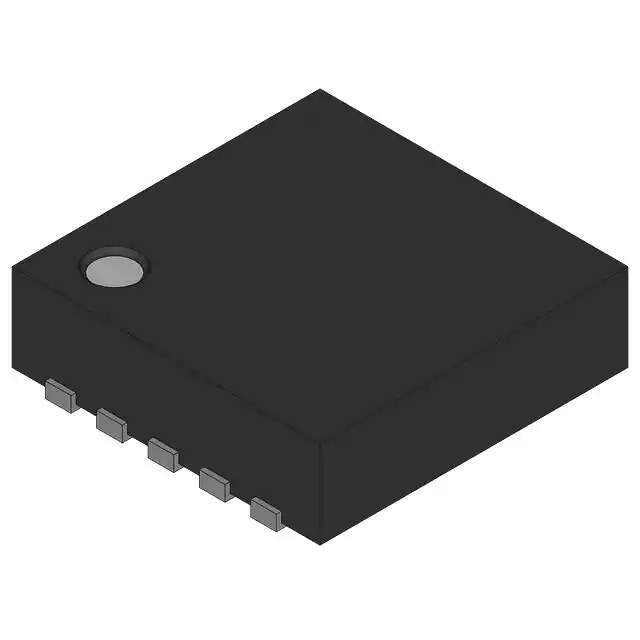

The MAX1574ETB from Maxim Integrated is a compact, high-efficiency, white LED driver designed to provide optimal power solutions for portable devices that utilize LED backlighting. This device is particularly well-suited for small-form-factor applications such as mobile phones, PDAs, and other handheld devices where power efficiency and space constraints are critical considerations.
Featuring a step-up converter that operates at a fixed frequency of 2MHz, the MAX1574ETB allows for the use of tiny, low-profile inductors and ceramic capacitors, thus minimizing the overall footprint on the PCB. The high switching frequency also enables the device to maintain a consistent performance without generating significant noise, making it an excellent choice for noise-sensitive applications.
One of the key benefits of the MAX1574ETB is its ability to drive up to four white LEDs in series with a constant current, ensuring uniform brightness and enhancing the overall user experience. The device offers a wide input voltage range from 2.6V to 5.5V, accommodating the varying power requirements of different battery technologies and system power buses.
The MAX1574ETB incorporates a built-in dimming control, providing users with the flexibility to adjust the brightness of the LED backlight to suit their preferences or to extend battery life. This dimming function can be controlled either through a PWM input or by using an analog voltage, giving designers multiple options for integrating the driver into their systems.
For safety and longevity, the device includes thermal-shutdown protection and built-in overvoltage protection, which prevents damage to the LEDs in the event of an open circuit. The MAX1574ETB is available in a tiny, 10-pin TDFN package, offering a space-saving solution without compromising on performance.
In summary, Maxim Integrated's MAX1574ETB is a versatile, efficient, and compact LED driver solution that meets the stringent demands of modern portable electronics, ensuring consistent lighting quality while maximizing battery life.
