Product Overview: PCA9685PW/Q900,118 from NXP

The PCA9685PW/Q900,118 is a sophisticated 16-channel, 12-bit PWM (Pulse Width Modulation) I²C-bus LED controller designed by NXP Semiconductors. This versatile component is particularly ideal for RGB or RGBA LED drivers due to its programmable blink and dimming functions, which offer enhanced lighting effects and power efficiency for a wide range of applications.

Key Features

• Multiple Channels: The device features 16 independent PWM channels, each capable of generating its own individual PWM signal, allowing for precise control of multiple outputs simultaneously.
• High Resolution: With 12-bit resolution for each output, it provides fine-grained control over the brightness levels, enabling smooth transitions and subtle variations in lighting intensity.
• I²C Interface: The PCA9685PW/Q900,118 uses a standard I²C-bus interface for communication, ensuring easy integration with most microcontrollers and processors.
• Adjustable Frequency: PWM output frequency is adjustable from 24 Hz to approximately 1526 Hz, offering flexibility for different lighting requirements.
• External Power Supply: It can be powered by an external supply, which can be up to 5.5 V, separate from the logic voltage, to accommodate various LED voltages.
• Enhanced Features: The device includes features such as a built-in oscillator, software reset, and both open-drain and totem pole output structures for improved versatility.

Applications

The PCA9685PW/Q900,118 is suitable for a broad array of applications, including:

• RGB or RGBA LED lighting
• Backlighting LCD displays
• LED status indication
• Server and telecom infrastructure
• Industrial control systems
• IoT and smart home devices

Quality and Reliability

As a product of NXP Semiconductors, a leader in secure connectivity solutions for embedded applications, the PCA9685PW/Q900,118 is manufactured to high-quality standards. It is designed to meet the rigorous demands of the electronics industry, ensuring reliability and performance for critical applications.

Product Packaging

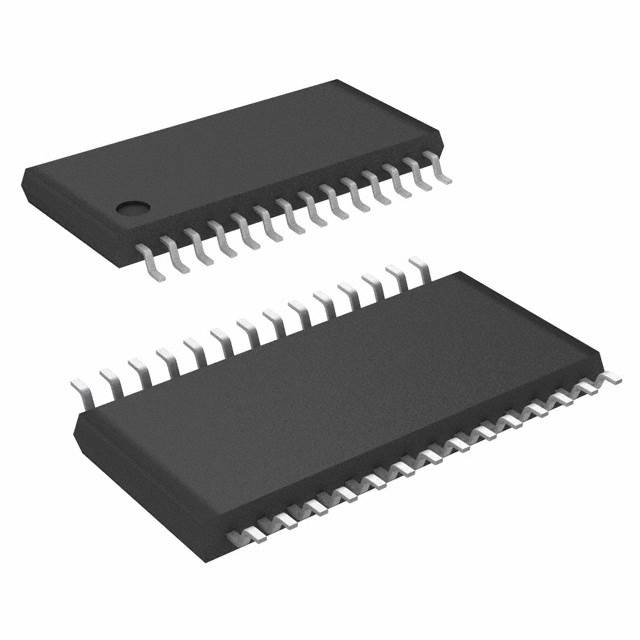

The PCA9685PW/Q900,118 comes in a TSSOP (Thin Shrink Small Outline Package) with 28 pins, which is suitable for surface-mounted technology, ensuring compact and efficient use of PCB space.
