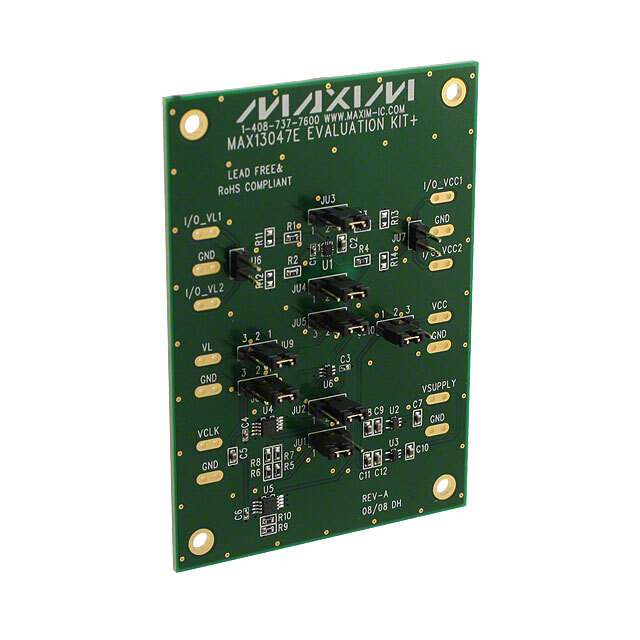

The MAX13047EEVKIT+ from Maxim Integrated is a comprehensive evaluation kit designed to demonstrate the capabilities of the MAX13047E high-speed level translator. This evaluation kit is an essential tool for engineers and developers who need to interface low-voltage digital signal processing (DSP) or microcontroller units (MCUs) with higher voltage systems.

Key Features

• High-Speed Bi-Directional Translation: The MAX13047E chip supports high-speed, bi-directional level shifting for four channels, making it ideal for applications that require fast data transfer between different voltage domains.
• Wide Voltage Range: The level translator operates with a V<sub>CCA range of 1.2V to 3.6V and a V<sub>CCB range of 1.65V to 5.5V, providing the flexibility to work with a variety of logic levels.
• Flow-Through Pinout: The chip's flow-through pinout simplifies PCB layout and reduces signal distortion, ensuring high signal integrity.
• Automatic Direction Sensing: The MAX13047E automatically senses the direction of data flow, which simplifies the design by eliminating the need for a direction control signal.
• Robust ESD Protection: Integrated electrostatic discharge (ESD) protection circuits safeguard the device against electrostatic shocks, enhancing the durability of the evaluation kit.

Applications

The MAX13047EEVKIT+ can be used in a variety of applications where level shifting is required, such as:

• Interfacing between low-voltage and high-voltage components within embedded systems.
• Connecting peripherals with different logic levels to MCUs or DSPs.
• Data communication within multi-voltage systems.

Package Contents

The evaluation kit includes:

• A fully assembled and tested evaluation board for the MAX13047E level translator.
• Detailed documentation, including schematics, layout files, and application notes to facilitate rapid development and testing.

With the MAX13047EEVKIT+, Maxim Integrated provides a versatile and reliable solution for level translation challenges, enabling designers to accelerate the development process and bring their products to market faster.
