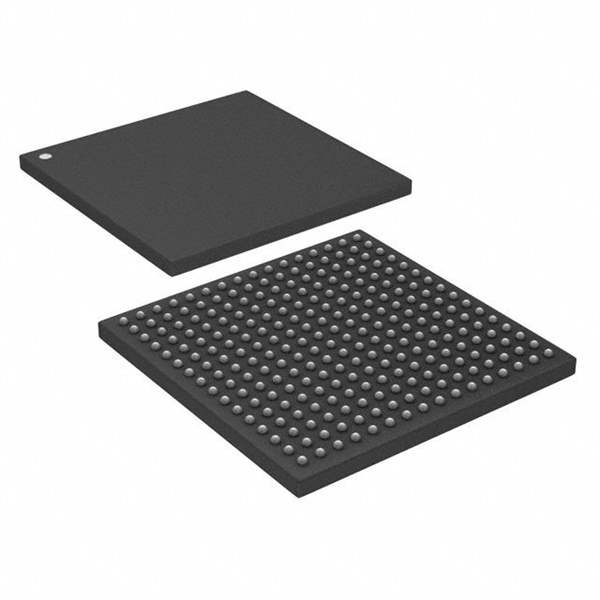

The Maxim Integrated DS26524 is a versatile, multi-feature T1/E1/J1 transceiver that provides a comprehensive solution for a wide range of telecommunications applications. This high-performance component is designed to handle both framing and line interface functions for T1, E1, and J1 data streams, making it an ideal choice for network equipment, including routers, switches, and base station infrastructure.

Key Features

• Integrated Functionality: The DS26524 integrates line interface, framer, and LIU (Line Interface Unit) functions into a single chip, reducing system complexity and board space.
• Flexible Operation: It supports T1, E1, and J1 operations, with independently configurable channels for mixed T1/E1/J1 applications.
• High-Performance Design: With adaptive equalization and jitter attenuation, the DS26524 ensures signal integrity over a variety of transmission media.
• Easy to Use: The device features software-selectable modes and extensive diagnostic capabilities, including built-in BERT (Bit Error Rate Testing) for simplified troubleshooting and maintenance.
• Power Efficiency: Maxim Integrated's commitment to power efficiency is evident in the DS26524's low power consumption, which is critical for high-density telecommunications equipment.

Applications

• Wireless Base Stations
• Network Routers and Switches
• Channel Banks
• Telecom Switching Equipment
• Frame Relay and ATM Equipment
• Test Equipment

Technical Specifications

• Supply Voltage: 3.3V ±5%
• Operating Temperature Range: -40°C to +85°C
• Package Type: Available in a 100-pin LQFP (Low-profile Quad Flat Package)

The DS26524 from Maxim Integrated offers a reliable and flexible solution for telecommunications designers and engineers looking to streamline their systems. Its combination of performance, ease of use, and efficiency makes it a standout choice for a multitude of T1/E1/J1 applications.
