Maxim Integrated DS2431X+U: 1-Wire EEPROM with Authentication

The DS2431X+U from Maxim Integrated is a high-security version of the standard DS2431 1-Wire EEPROM device, designed to store and protect sensitive data in applications requiring stringent data security measures. This advanced 1-Kbit protected EEPROM offers a unique combination of features that make it ideal for a wide range of applications, including accessory identification and authentication, medical device data storage, and secure token generation.

At the core of the DS2431X+U's security features is the implementation of the ChipDNA™ physically unclonable function (PUF) technology. This technology utilizes the naturally occurring random analog characteristics of fundamental semiconductor device structures to produce cryptographic keys. Since these keys are not stored in memory but are instead regenerated as needed, they are highly resistant to invasive attacks, providing a robust level of security for the stored data.

The device's 1-Wire interface ensures that communication with the host system is both straightforward and minimalistic, requiring only a single data line (plus ground) for operation. This simplifies the integration of the DS2431X+U into designs where pin count and space are at a premium. The 1-Wire protocol also allows for the device to be powered directly from the data line ("parasite power"), eliminating the need for an external power supply.

With a memory capacity of 1024 bits (128 bytes), the DS2431X+U is organized as four memory pages of 32 bytes each. The memory can be accessed through read and write operations, and the built-in 64-bit ROM ID serves as a unique serial number, which is factory-lasered into each chip, providing a distinct identity that can be used for device authentication and tracking.

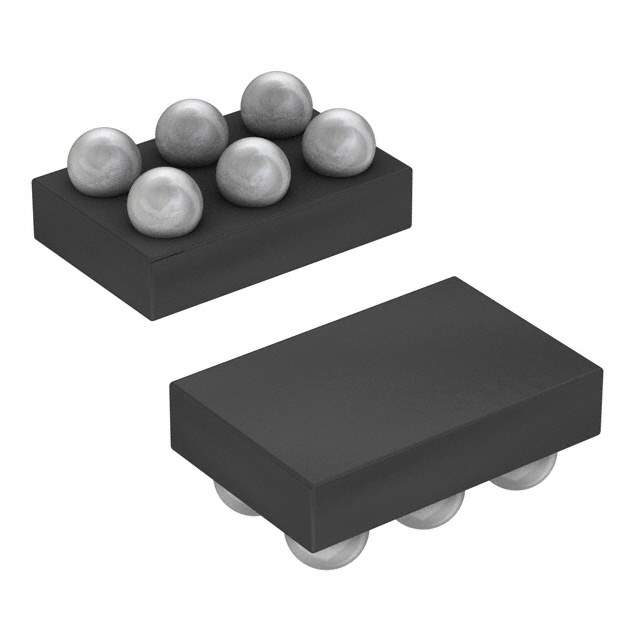

The DS2431X+U operates over a wide voltage range of 2.8V to 5.25V and is specified for a wide temperature range, making it suitable for harsh environments. Its compact form factor is available in a 6-pin TSOC package, which is conducive to space-constrained applications.

Overall, the Maxim Integrated DS2431X+U represents a secure and reliable solution for data storage and protection, harnessing cutting-edge security technology to meet the demands of modern electronic systems.
