The DS1820 from Maxim Integrated is a versatile and precise 1-Wire digital thermometer that provides 9-bit temperature readings which indicate the temperature of the device. Its wide range of applications includes HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.

With its unique 1-Wire interface, the DS1820 requires only one data line (and ground) for communication with a central microprocessor. This simplifies its integration into applications with limited pin availability and reduces the complexity of the system design. It also allows for multiple DS1820 devices to exist on the same data bus, enabling a single microprocessor to control many devices distributed over a large area.

Key Features:

• Temperature Range: The DS1820 operates over a temperature range of -55°C to +125°C (-67°F to +257°F) with an accuracy of ±0.5°C from -10°C to +85°C.
• Reduced Complexity: The need for only a single data line (and ground) for communication makes the DS1820 an ideal choice for applications where space and pin count are at a premium.
• Multi-Drop Capability: Multiple sensors can be placed on the same 1-Wire bus, which means large sensor networks can be managed with just one digital input on the microprocessor.
• User-Definable Nonvolatile (NV) Alarm Settings: Temperature thresholds are stored in the onboard NV memory, which triggers an alarm if the temperature exceeds programmed limits.
• Conversion Time: The DS1820 provides a 9-bit temperature reading in less than 750ms.

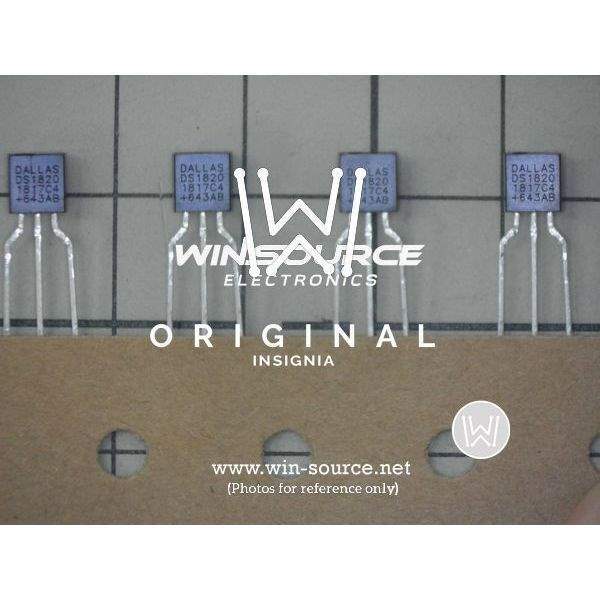

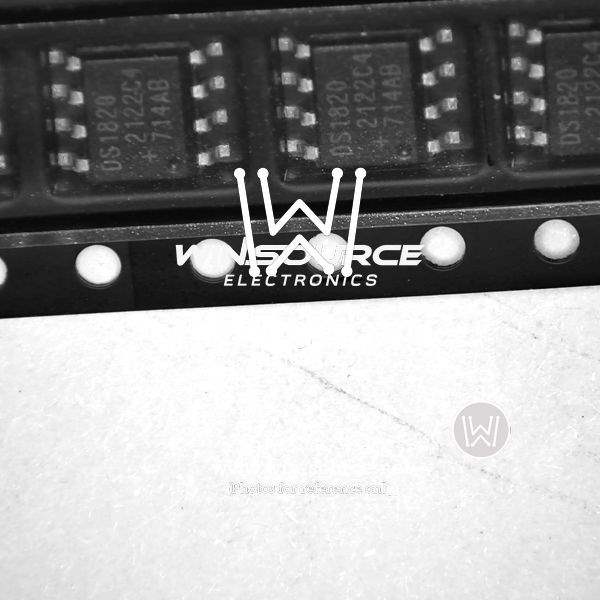

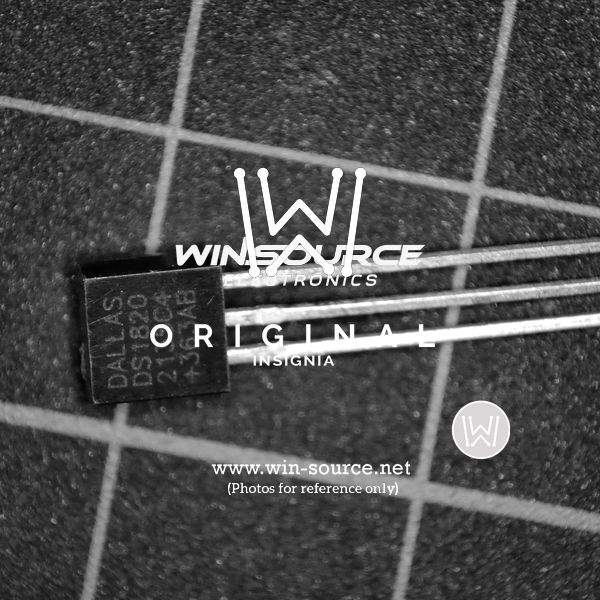

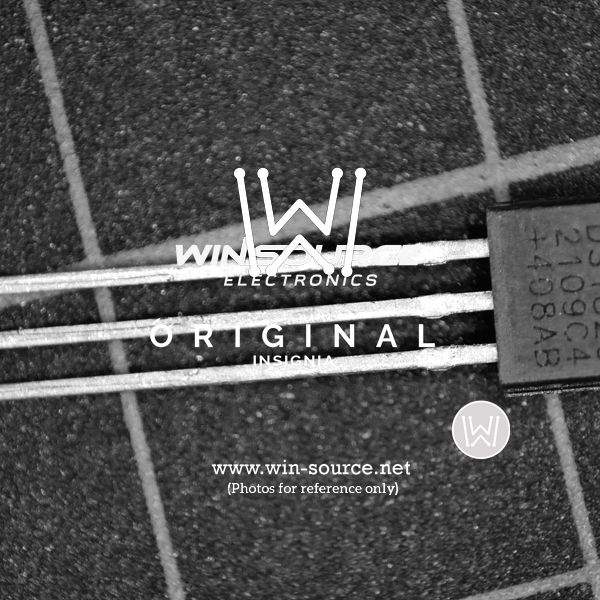

Moreover, the device includes a unique, factory-lasered and tested 64-bit registration number that ensures error-free device selection and absolute traceability because no two parts are alike. The DS1820 is available in a variety of packages, depending on your needs, including the TO-92, SOIC, and TSOC packages.

The DS1820 is a powerful and cost-effective solution for any temperature sensing application that requires digital precision with minimal integration effort. Whether you're building a smart thermostat or monitoring a critical industrial process, the DS1820 is a reliable choice that engineers trust for its performance and ease of use.
