Same model may have multiple batches, images only for reference.

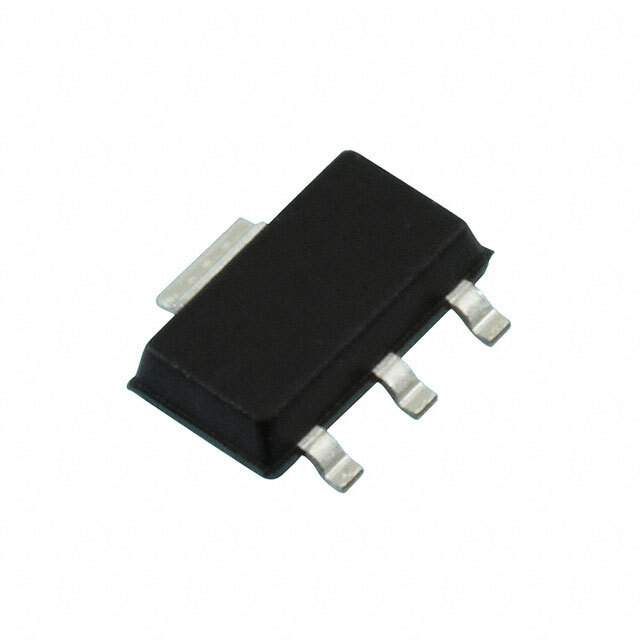

HAL516SF-A Real Image
Same model may have multiple batches, images only for reference.

HAL516SF-A

Part No HAL516SF-A
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH UNIPOL SOT89B-1 / Digital Switch Unipolar Switch Open Drain Hall Effect SOT-89B-1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr TDK-Micronas GmbH
Series HAL® 5xy
Package Tape & Reel (TR)
Product Status Obsolete
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 5mT Trip, 3.8mT Release
Test Condition 25°C
Voltage - Supply 3.8V ~ 24V
Current - Supply (Max) 4.2mA
Current - Output (Max) 20mA
Output Type Open Drain
Features Temperature Compensated
Temperature Range - Operating -40°C ~ 170°C (TJ)
Mounting SMD (SMT)
Supplier Device Package SOT-89B-1
Package / Case TO-243AA, Variant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 2,000
Win Source Part Number 1061769-HAL516SF-A
Ultra Librarian 3D Model Ultra Librarian HAL516SF-A CAD Model

Description

The HAL516SF-A is a magnetic sensor switch that is designed to detect the presence of a magnetic field manufactured by TDK-Micronas GmbH.

  • Mounting: Surface-mounted
  • Package: Tape and Reel
  • Standard Package: 2,000
  • Voltage Supply: 3.8V to 24V
  • Sensing Range (Trip): 5mT
  • Sensing Range (Release): 3.8mT
