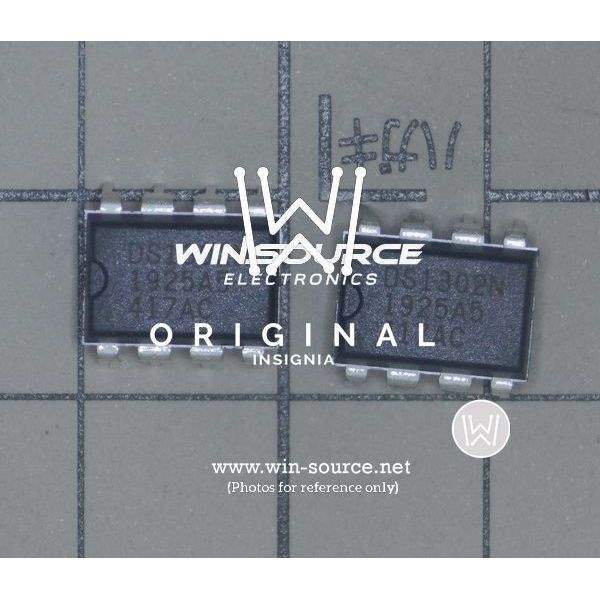

Maxim Integrated DS1302N+ Real-Time Clock

The DS1302N+ from Maxim Integrated is a versatile real-time clock (RTC) module that provides a comprehensive timekeeping solution for a wide array of applications. This integrated circuit is designed to maintain accurate time and date information, ranging from seconds to years, making it an essential component for time-critical applications and devices that require reliable time management.

One of the key features of the DS1302N+ is its trickle-charge timekeeping chip, which contains a real-time clock/calendar and 31 bytes of static RAM. This allows the device to communicate with a microprocessor via a simple serial interface. The RTC operates in either 24-hour or 12-hour format with an AM/PM indicator, providing flexibility in time representation based on regional or application-specific requirements.

The DS1302N+ is equipped with a built-in power-sense circuit that detects power failures and automatically switches to the backup supply, maintaining timekeeping with minimal power consumption. This feature ensures that the clock continues to run even during power outages, making it ideal for systems that cannot afford to lose time information.

Furthermore, the device is designed to operate over a wide voltage range of 2.0V to 5.5V, which allows it to be used in both 3V and 5V systems. This versatility makes the DS1302N+ suitable for various electronic applications, including embedded systems, consumer electronics, and industrial control systems.

The DS1302N+ comes in a compact 8-pin DIP (Dual In-line Package) or optional 8-pin SO (Small Outline) package, providing ease of integration into existing designs. Its simple and effective serial interface requires minimal I/O pins for communication, making it a resource-efficient choice for systems with limited GPIO availability.

Overall, the Maxim Integrated DS1302N+ real-time clock is a reliable and cost-effective solution for maintaining accurate time in electronic systems, ensuring consistent performance and dependability for both designers and end-users.
