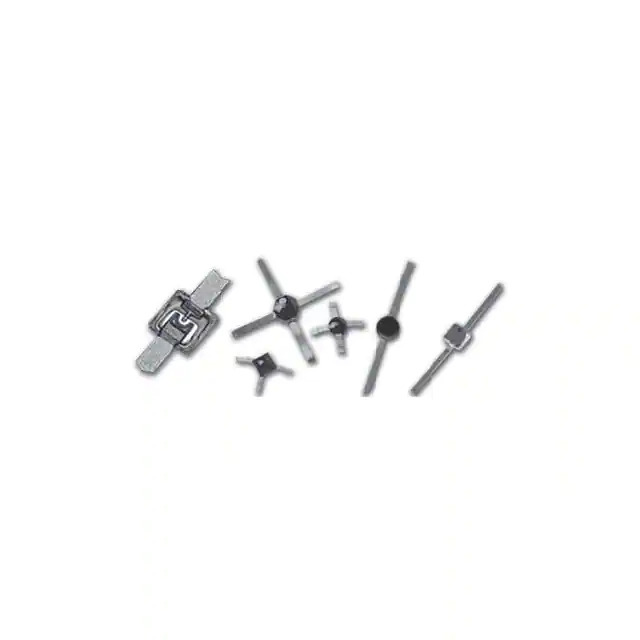

MSS30-046-C15 M/A-Com Technology Solutions
Same model may have multiple batches, images only for reference.

MSS30-046-C15

Part No MSS30-046-C15
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description SCHOTTKY DIODE,CHIP, C15
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr MACOM Technology Solutions
Series -
Package Tray
Product Status Active
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 2V
Current - Max 50 mA
Capacitance @ Vr, F 0.12pF @ 0V, 1MHz
Resistance @ If, F 10Ohm @ 5mA, 1MHz
Power Dissipation (Max) 100 mW
Temperature Range - Operating -65°C ~ 150°C
Package / Case Die
Supplier Device Package Chip
Base Product Number MSS30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1379241-MSS30-046-C15
Ultra Librarian 3D Model Ultra Librarian MSS30-046-C15 CAD Model

Description

The MACOM Technology Solutions RF Diode is a Schottky diode designed for RF applications. Bold the product name (e.g., BAV99S,135 → RF Diode) and manufacturer (e.g., Nexperia USA Inc. → MACOM Technology Solutions).

  • Diode Type: Schottky
  • Voltage Rating: 2V
  • Maximum Current Rating: 50mA
  • Capacitance: 0.12pF @ 0V and 1MHz
  • Resistance: 10Ohm @ 5mA and 1MHz
  • Package: Die
  • Packaging: Tray
  • Power Dissipation: 100mW
  • Operating Temperature: -65°C to 150°C
  • Application: High-Frequency RF Circuits
