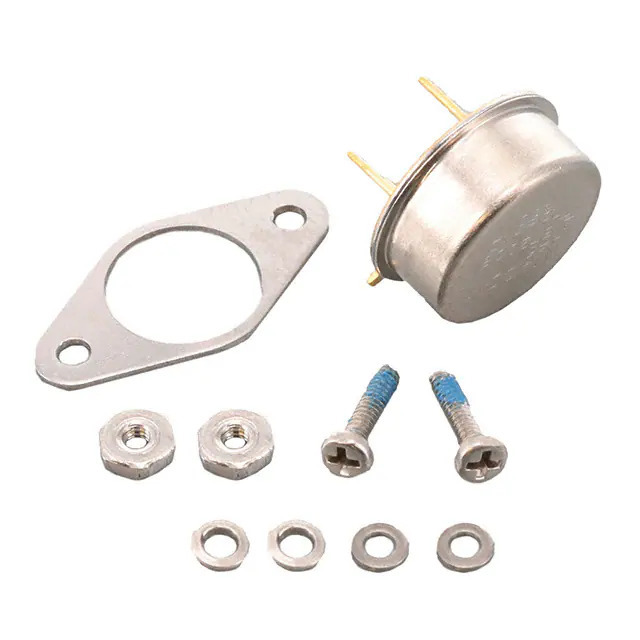

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr MACOM Technology Solutions
Series CA45
Package Tray
Product Status Active
Frequency 1GHz ~ 4GHz
P1dB 19.5dBm
Gain 17.5dB
Noise Figure 4dB
RF Type General Purpose
Voltage - Supply 15V
Current - Supply 120mA
Test Frequency 1GHz ~ 4GHz
Package / Case Module, SMA Connectors
Supplier Device Package -
MSL Level 1 (Unlimited)
Win Source Part Number 1378111-CA45
Ultra Librarian 3D Model Ultra Librarian CA45 CAD Model

Description

The CA45 RF Amplifier from MACOM Technology Solutions is a general-purpose amplifier designed for RF and wireless applications.

  • Frequency: 1GHz ~ 4GHz
  • Applications: RF, Wireless
  • Package / Case: Module, SMA
  • Voltage - Supply: 15V
  • Gain: 17.5dB
  • P1dB: 19.5dBm
  • Noise Figure: 4dB
  • Product Status: Active
