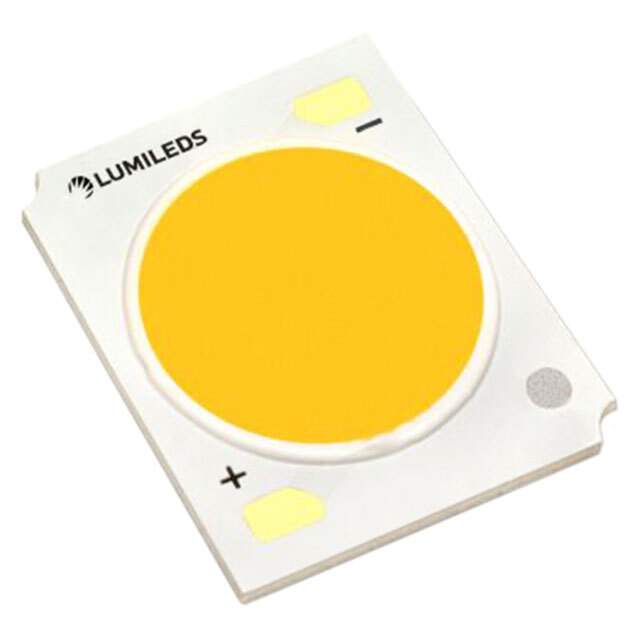

L2C5-30901208E1500 Real Image
Same model may have multiple batches, images only for reference.

L2C5-30901208E1500

Part No L2C5-30901208E1500
Manufacturer Lumileds
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CORE RANGE GEN3 WW RECT / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Rectangle
Datasheet
L2C5-30901208E1500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Lumileds
Series LUXEON CoB Core Range Gen 3
Package Tube
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Rectangle
Luminous Flux @ Current/Temperature 3610lm (Typ)
Current - Test 900mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34.8V
Lumens/Watt @ Current - Test 115 lm/W
Current - Max 1.8A
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 20.00mm L x 24.00mm W
Height 1.50mm
Light Emitting Surface (LES) 15.00mm Dia
Lens Type Flat
Base Product Number L2C5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1814-5
Standard Package 100
Win Source Part Number 1068367-L2C5-30901208E1500
Ultra Librarian 3D Model Ultra Librarian L2C5-30901208E1500 CAD Model

Description

The L2C5-30901208E1500 is a chip on board (COB) LED from Lumileds.

  • Series: LUXEON CoB Core Range Gen 3
  • Colors: White and warm colors
  • Viewing Angle: 115 degrees
  • Voltage Forward: 34.8V
  • Current Max: 1.8A
  • Current Test: 900mA
  • CCT: 3000K
  • CRI: 90
  • Luminous Flux: 3610lm
  • Operating Temperature: 85 degrees Celsius
  • RoHS Compliant: Yes
  • ECCN: EAR99
