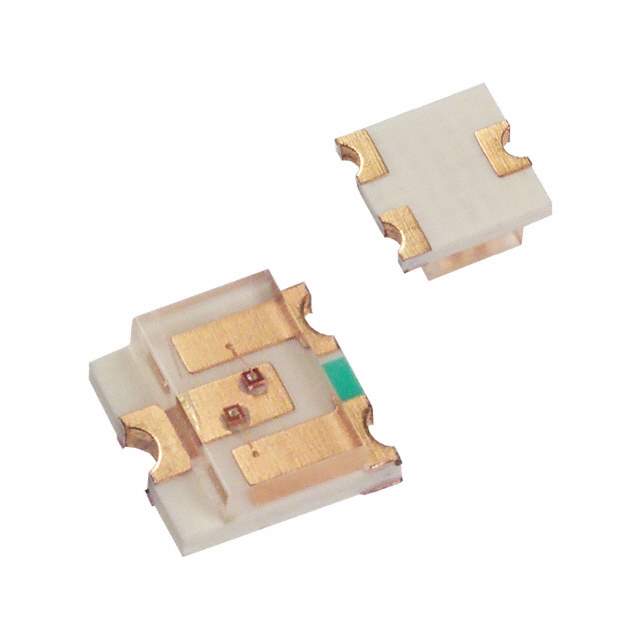

SML-LX15HC-RP-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX15HC-RP-TR

Part No SML-LX15HC-RP-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR SOT23 SMD / Red LED Indication - Discrete 2V TO-236, SC-59, SOT-23-3 variant, 3-SMD
Datasheet
SML-LX15HC-RP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 5mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 3.00mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 700nm
Package / Case TO-236, SC-59, SOT-23-3 variant, 3-SMD
Supplier Device Package SOT-23
Dimension 3.00mm L x 3.00mm W
Height (Max) 1.00mm
Base Product Number SML-LX15
Other Names 67-2286-6,SML-LX15HC-RP-TRR,67-2286-2,67-2286-1,SML-LX15HC-RP-TR
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241846-SML-LX15HC-RP-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX15HC-RP-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LX15HC-RP-TR is a red LED indication component that is perfect for various applications.

  • Viewing Angle: 140 degrees
  • Forward Voltage (typical): 2V
  • Millicandela Rating: 5mcd
  • Wavelength: 700nm
  • Height: 1.00mm
  • Package: TO-236, SC-59, SOT-23-3 variant, 3-SMD
  • Lens Style: Rectangle with a flat top
  • Lens Size: 2.00mm x 3.00mm
  • REACH: Unaffected
  • Standard Package: 3,000
