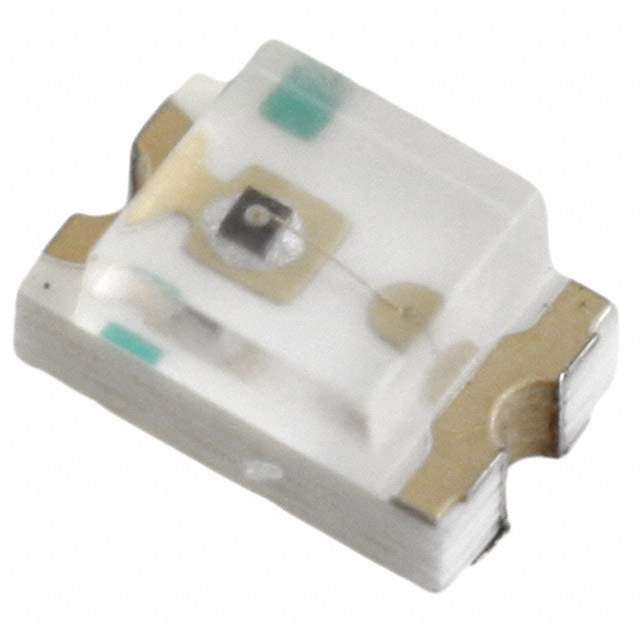

SML-LX0805SGC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LX0805SGC-TR

Part No SML-LX0805SGC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN CLEAR SMD / Green LED Indication - Discrete 2.1V 0805 (2012 Metric)
Datasheet
SML-LX0805SGC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 15mcd
Lens Style Rectangle with Flat Top
Lens Size 1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Peak 565nm
Package / Case 0805 (2012 Metric)
Dimension 2.00mm L x 1.25mm W
Height (Max) 1.20mm
Base Product Number SML-LX0805
Other Names 67-2190-2,67-2190-1,SML-LX0805SGC-TRR,SML-LX0805SGC-TR,67-2190-6,Q8335496A
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241879-SML-LX0805SGC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LX0805SGC-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LX0805SGC-TR is a green surface mount LED that comes in a rectangular shape with a flat top.

  • Lens Color: Clear Colorless
  • Size: 1.40mm x 1.25mm
  • Viewing Angle: 140 degrees
  • Millicandela Rating: 15mcd
  • Forward Voltage: 2.1V
  • Current Test: 20mA
  • Ideal for: LED indication and discrete applications
