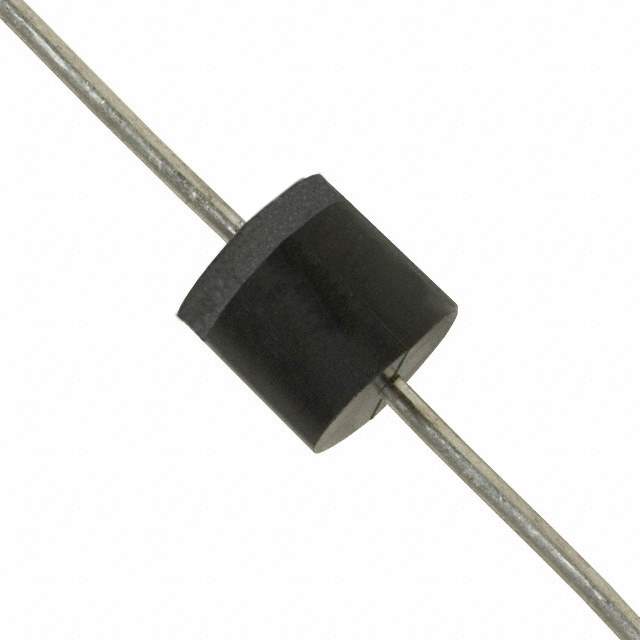

TP5KP11A Real Image
Same model may have multiple batches, images only for reference.

TP5KP11A

Part No TP5KP11A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 11WVM 18.2VC AEC-Q
Datasheet
TP5KP11A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 11V
Minimum Breakdown Voltage 12.2V
Max Clamping Voltage 18.2V
Peak Pulse Current(Ippm) 280.2A
Power Dissipation - Pd 5000W (5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package P600
Win Source Part Number 1006356-TP5KP11A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TP5KP11A CAD Model

Description

The TP5KP11A is a Zener type electronic component manufactured by Littelfuse Inc.

  • Market Status: active
  • Popularity: medium
  • Maximum Clamping Voltage: 18.2V
  • Peak Pulse Current: 280.2A
  • Application: general-purpose
  • Mounting: through hole
  • Temperature Range: -55°C to 150°C (TJ)
  • Power Dissipation: 5000W (5kW)
  • Packaging: reel - TR
  • Case/Package: P600
