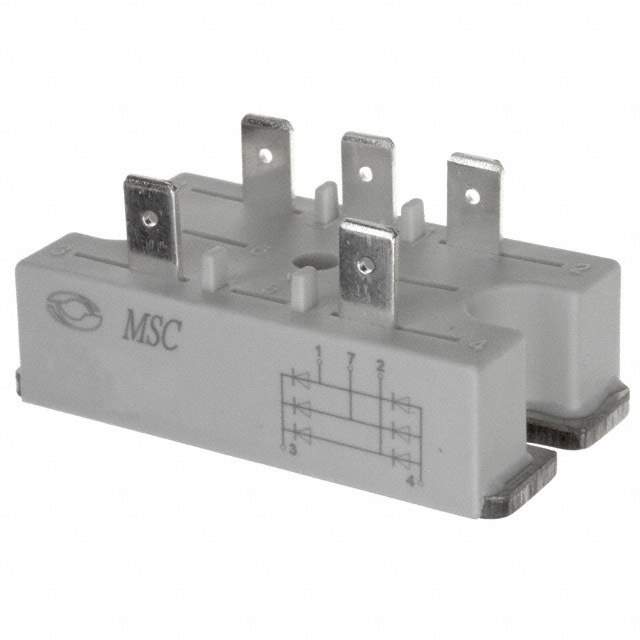

MSD30-08 Real Image
Same model may have multiple batches, images only for reference.

MSD30-08

Part No MSD30-08
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECT 3PHASE 800V 30A MSD  /  Bridge Rectifier Three Phase Standard 800 V QC Terminal MSD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Microsemi Corporation
Package Bulk
Product Status Obsolete
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 30 A
Voltage - Forward (Vf) (Max) @ If 1.6 V @ 100 A
Current - Reverse Leakage @ Vr 200 µA @ 800 V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type QC Terminal
Package / Case M1
Supplier Device Package MSD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names MSD3008,MSD30-08-ND,150-MSD30-08
Standard Package 1
Win Source Part Number 1151058-MSD30-08
Ultra Librarian 3D Model Ultra Librarian MSD30-08 CAD Model

Description

The MSD30-08 is a three-phase diode bridge rectifier designed and manufactured by Microsemi Corporation.

  • Diode Configuration: Three-Phase Diode Bridge Rectifier
  • Current Average Rectified (Io): 30A
  • Voltage Forward (Vf) (Max) @ If: 1.6V @ 100A
  • Current Reverse Leakage @ Vr: 200μA @ 800V
  • Voltage Peak Reverse (Max): 800V
  • Terminal Type: QC Terminal
  • Package: M1
  • Operating Temperature Range: -40°C to 150°C (TJ)
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.10.0080
