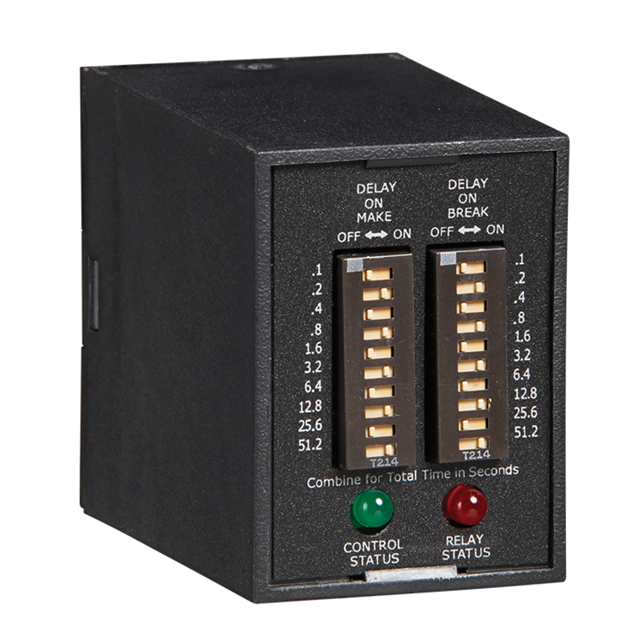

TDMB411 Real Image
Same model may have multiple batches, images only for reference.

TDMB411

Part No TDMB411
Manufacturer Littelfuse Inc.
Catalog Time Delay Relays
Description RELAY TIME DEL 102.3SEC 10A 120V / Off-Delay, On-Delay Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 102.3 Sec Delay 10A @ 120/240VAC Socketable
Datasheet
TDMB411 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Time Delay Relays
Mfr Littelfuse Inc.
Series TDMB
Package Bulk
Mounting Type Socketable
Relay Type Mechanical Relay
Function Off-Delay, On-Delay
Circuit SPDT (1 Form C)
Delay Time 0.1 Sec ~ 102.3 Sec
Contact Rating @ Voltage 10A @ 120/240VAC
Voltage - Supply 120VAC
Termination Style Plug In, 8 Pin (Octal)
Timing Adjustment Method DIP Switches
Timing Initiate Method Input Voltage, Trigger Signal
MSL Level Not Applicable
ECCN EAR99
HTSUS 9107.00.8000
Other Names -1024-TDMB411
Standard Package 1
Win Source Part Number 1099007-TDMB411
Ultra Librarian 3D Model Ultra Librarian TDMB411 CAD Model

Description

The TDMB411 is an industrial automation and control time delay relay from Littelfuse Inc.

  • Termination Style: Plug-in, 8-pin (octal)
  • Package: Bulk
  • Relay Type: Mechanical
  • Circuit: SPDT (1 Form C)
  • Contact Rating: 10A @ 120/240VAC
  • Delay Time: 0.1 sec to 102.3 sec
  • Timing Adjustment Method: DIP switches
  • Timing Initiate Method: Input voltage or trigger signal
  • Voltage Supply: 120VAC
  • Mounting: Socketable
  • Functions: Off-delay or on-delay
