Same model may have multiple batches, images only for reference.

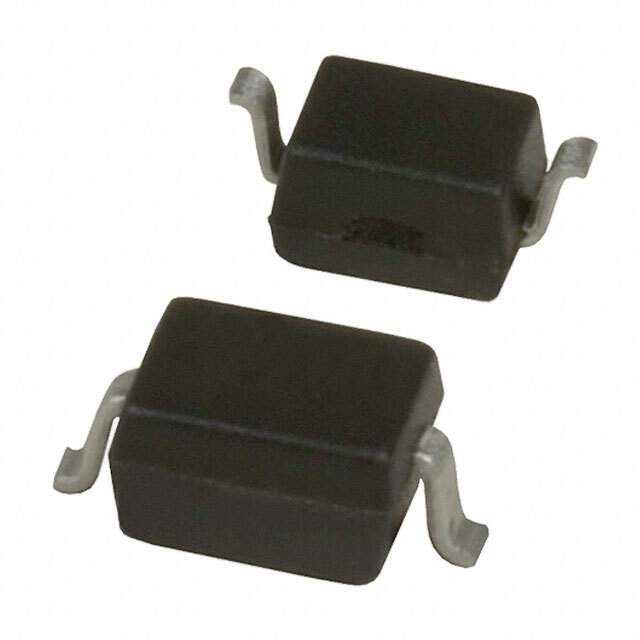

SP4021-01FTG Real Image
Same model may have multiple batches, images only for reference.

SP4021-01FTG

Part No SP4021-01FTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 19.6VC SOD323
Datasheet
SP4021-01FTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6.3V
Max Clamping Voltage 19.6V (Typ)
Peak Pulse Current(Ippm) 24A (8/20μs)
Power Dissipation - Pd 600W
Applications Ethernet
Capacitance @ Frequency 2.5pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 1101348-SP4021-01FTG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SP4021-01FTG CAD Model

Description

The Littelfuse Inc. SP4021-01FTG is a steering diode designed for circuit protection in Ethernet applications.

  • Channel: Unidirectional
  • Standoff Voltage: 5V (max)
  • Breakdown Voltage (Min): 6.3V
  • Package: SOD-323
  • Mounting: SMD
  • Capacitance: 2.5pF @ 1MHz
  • Clamping Voltage: 19.6V (typ)
  • Peak Pulse Current: 24A (8/20μs)
  • Power Dissipation: 600W
  • Operating Temperature: -40°C to 125°C (TJ)
  • Category: Circuit Protection
  • Status: active
  • Supply and Demand: balanced
