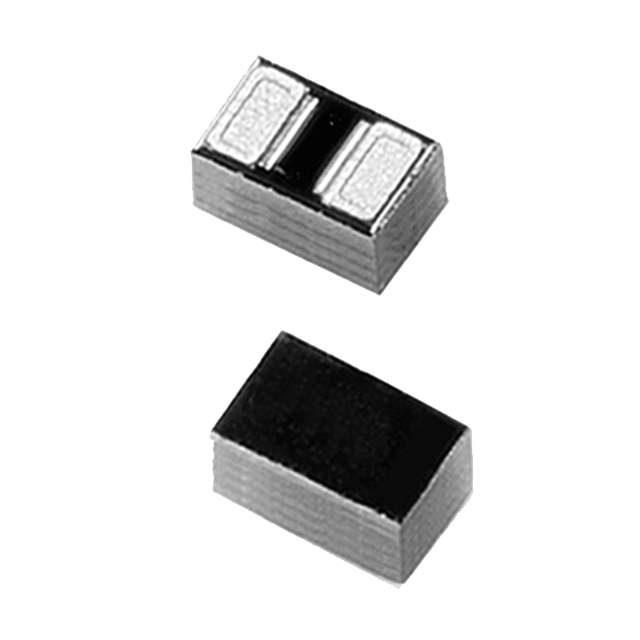

SP3130-01WTG Real Image
Same model may have multiple batches, images only for reference.

SP3130-01WTG

Part No SP3130-01WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 28VWM 48VC 0201 FLIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 51 Weeks
Features 48V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount 0201 FlipChip
Manufacturer Littelfuse Inc.
Series SP3130, SPA®
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 0201 (0603 Metric)
Case / Package 0201 Flipchip
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number -SP3130-01WTG, F7506DKR, F7506TR, F7506CT
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896916-SP3130-01WTG
Ultra Librarian 3D Model Ultra Librarian SP3130-01WTG CAD Model

Description

The Littelfuse Inc. SP3130 series is a 48V clamp 2A (8/20µs) Ipp Tvs diode surface mount 0201 flip-chip.

  • Clamp Voltage: 48V
  • Peak Pulse Current: 2A (8/20µs) Ipp
  • Mounting: Surface mount
  • Package: 0201 flip-chip
  • Operating Temperature: -40°C to 125°C (TJ)
  • Package Size: 0201 (0603 metric)
  • Mounting Type: reel - TR
  • ECCN: EAR99
  • Supply and Demand Status: balanced
  • Quantity per Package: 10000
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 51 weeks
  • HTSUS: 8541.10.0080
  • Other part numbers: -SP3130-01WTG, F7506DKR, F7506TR, F7506CT
