Same model may have multiple batches, images only for reference.

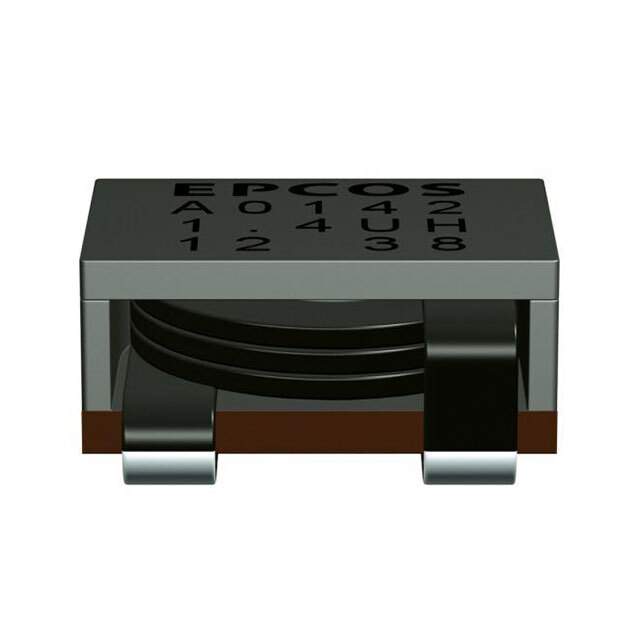

B82559A0392A013 Real Image
Same model may have multiple batches, images only for reference.

B82559A0392A013

Part No B82559A0392A013
Manufacturer EPCOS (TDK)
Catalog Fixed Inductors
Description FIXED IND 3.9UH 12A 4.8 MOHM SMD
Datasheet
B82559A0392A013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Categories Inductors, Coils, Chokes
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.9μH
Tolerance ±10%
Current Rating 12A
Current - Saturation 12A
DC Resistance (DCR) 4.8 mOhm
Temperature Range - Operating -40°C to 130°C
Frequency - Test 10kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.234" (5.95mm)
Win Source Part Number 230110-B82559A0392A013
Family Name B82559*A013
Introduction Date January 27, 1999
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian B82559A0392A013 CAD Model

Description

Product Overview

The B82559A0392A013 inductor offers reliable performance with a focus on energy efficiency. It is an excellent choice for systems requiring precise inductance control and minimal energy loss.

Applications

  • Switching Power Supplies
  • DC-DC Converters
  • RF Circuits
  • Embedded Systems

Features and Benefits

  • Excellent Q factor
  • Low core loss
  • Optimized for high-frequency applications
  • Durable construction

This component's design is optimized for thermal management and stability across a range of operating conditions, making it versatile for various technology-driven projects.
