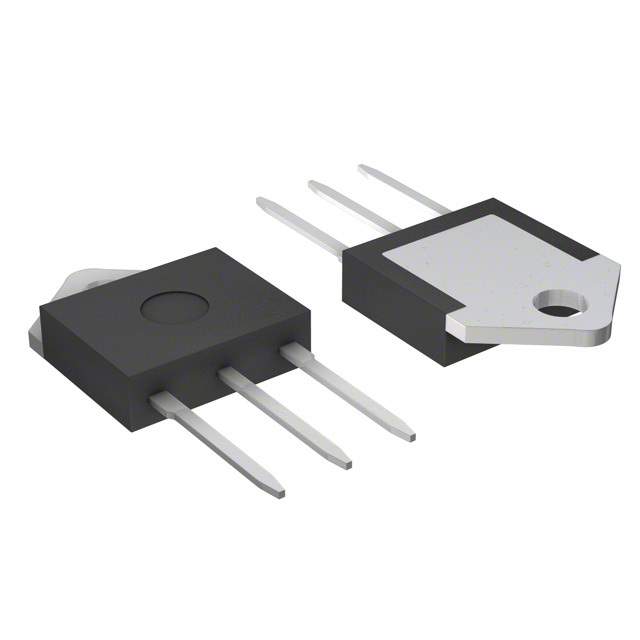

Same model may have multiple batches, images only for reference.

S2055MTP

Name: S2055MTP
Brand: Littelfuse Inc.
SKU: 1278809
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S2055MTP
Manufacturer	Littelfuse Inc.
Catalog	SCRs - Single
Datasheet	S2055MTP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Thyristors - SCRs
Mfr	Littelfuse Inc.
Package	Tube
Product Status	Obsolete
Voltage - Off State	200 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.8 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	60 mA
Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A
SCR Type	Standard Recovery
Temperature Range - Operating	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-218-3, TO-218AC
Supplier Device Package	TO-218 Non-Isolated Tab
Standard Package	25
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.30.0080
Win Source Part Number	1278809-S2055MTP
Ultra Librarian 3D Model	Ultra Librarian S2055MTP CAD Model

Description

The S2055MTP is a standard recovery thyristor produced by Littelfuse Inc. It has a maximum voltage of 200 V and a maximum current of 35 A (It (AV)) and 55 A (It (RMS)). The current hold (Ih) (Max) is 60 mA and the voltage on state (Vtm) (Max) is 1.8 V. The S2055MTP is suitable for a variety of applications that require high performance and reliability. This product is categorized under Discrete Semiconductor Products>Thyristors - SCRs and is packaged in a tube with a standard package of 25.
