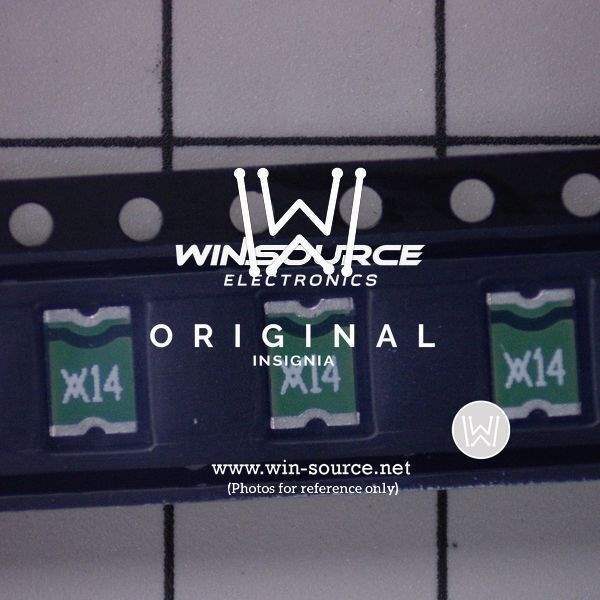

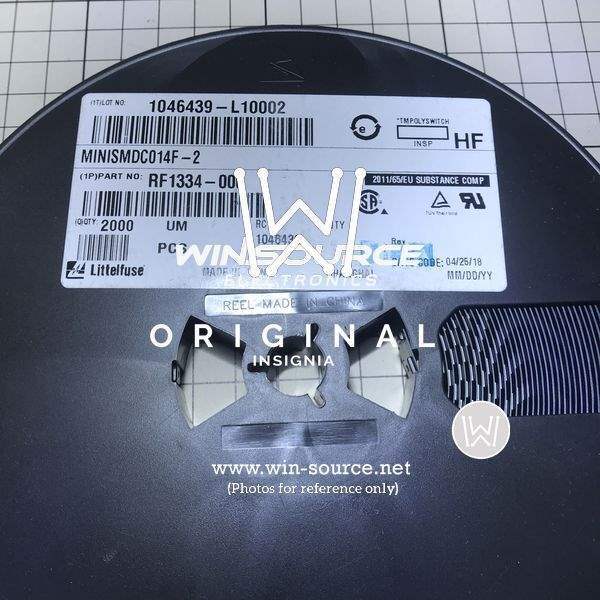

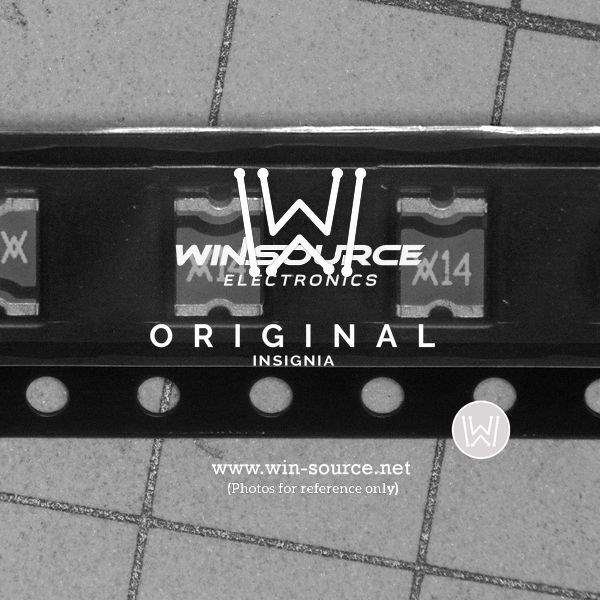

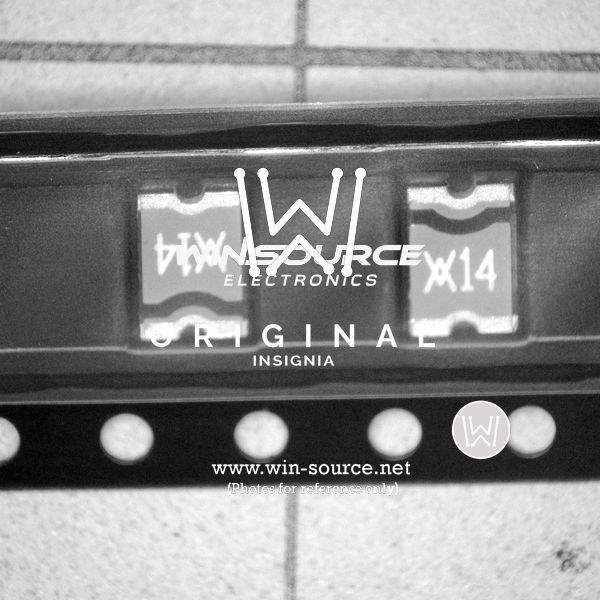

Same model may have multiple batches, images only for reference.

MINISMDC014F-2

Name: MINISMDC014F-2
Brand: Littelfuse Inc.
SKU: 231220
Availability: InStock
Rating: 4.85 (519 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MINISMDC014F-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	POLYSWITCH .14A RESET FUSE SMD / PTC Resettable Fuse 0.14A(hold) 0.28A(trip) 60VDC 10A 0.75W 0.008s 1.5Ohm SMD Solder Pad 4.73 X 3.41 X 0.89mm T/R Automotive
Datasheet	MINISMDC014F-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Littelfuse Inc.
Packaging	Reel - TR
Status	Active
Type	Polymeric
Voltage - Max	60V
Current - Max	10A
Current - Hold (Ih) (Max)	140mA
Current - Trip (It)	280mA
Time to Trip	8ms
Resistance - Initial (Ri) (Min)	1.5 Ohm
Resistance - Post Trip (R1) (Max)	6 Ohm
Temperature Range - Operating	-40°C to 85°C
Mounting	SMD (SMT)
Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max)	0.035" (0.89mm)
Approvals	CSA, TUV, UL
Win Source Part Number	023353-MINISMDC014F-2
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Safety, Consumer Electronics, Portable Devices, Multimedia, Automotive, Industrial
Family Name	MINISMDC
Introduction Date	August 10, 2016
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian MINISMDC014F-2 CAD Model

Alternative Products

Description

The Littelfuse Inc. MINISMDC014F-2 is a polymeric type circuit protection component manufactured by Littelfuse Inc.

Win Source part number: 023353-MINISMDC014F-2
Applications: Safety, consumer electronics, portable devices, multimedia, automotive, and industrial applications.
