Same model may have multiple batches, images only for reference.

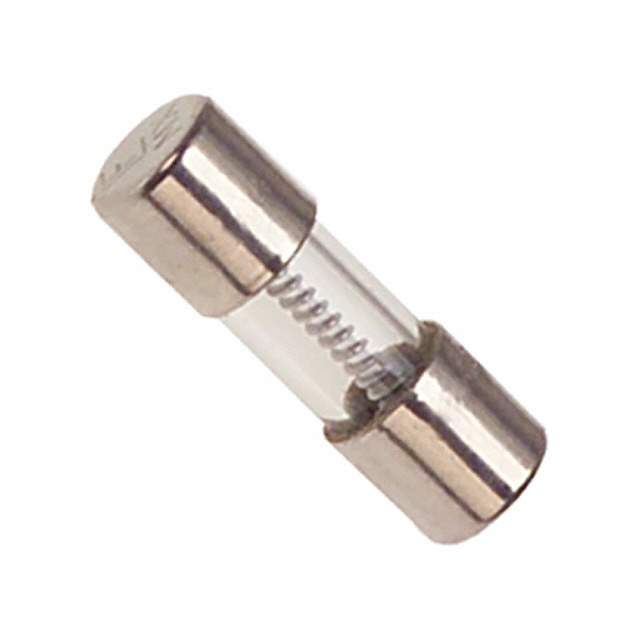

0229003.HXP Real Image
Same model may have multiple batches, images only for reference.

0229003.HXP

Part No 0229003.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3A 250VAC 125VDC 2AG / 3 A 250 V AC 125 V DC Fuse Cartridge, Glass Holder 2AG, 5mm x 15mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Case / Package 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 35A AC, 10kA DC
Melting I2t 77
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
DC Cold Resistance 0.0383 Ohms
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Part Number 0229003HXP,F2470,229003P,229003,-1024-0229003.HXP,229003.P
Standard Package 100
Win Source Part Number 1334659-0229003.HXP
Ultra Librarian 3D Model Ultra Librarian 0229003.HXP CAD Model

Description

The Littelfuse Inc. cartridge glass fuse is a slow-blow type with a voltage rating of 250 V AC and 125 V DC.

  • Response Time: slow blow
  • Voltage Rating: 250 V AC and 125 V DC
  • Breaking Capacity: 35A AC and 10kA DC @ rated voltage
  • DC Cold Resistance: 0.0383 Ohms
  • Melting I2t: 77
  • Size / Dimension: 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
  • Case / Package: 2AG, 5mm x 15mm
  • Current Rating: 3 A
  • Operating Temperature: -55°C to 125°C
  • RoHS3 Compliant: Yes
  • Standard Package: 100
  • Mounting Type: Holder
  • Approvals: CE, CSA, PSE, and UL
