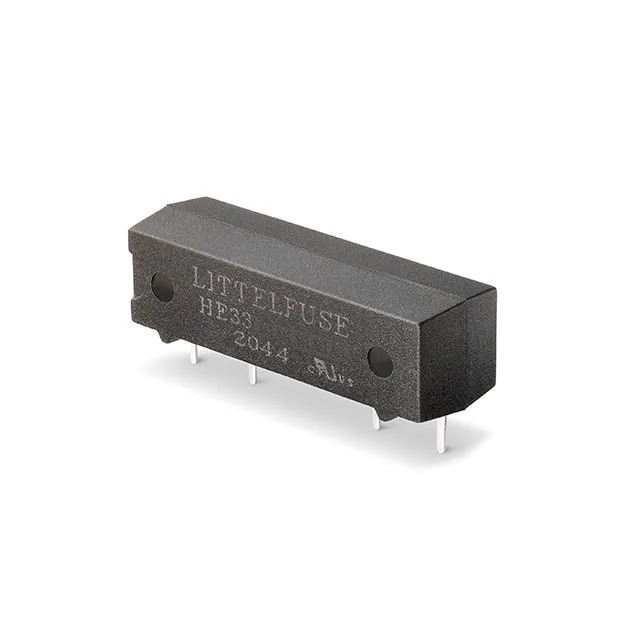

HE3351A1200 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

HE3351A1200

Part No HE3351A1200
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED SPST 1A 12V
Datasheet
HE3351A1200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Littelfuse Inc.
Series HE3300
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 1 A
Switching Voltage 300VDC - Max
Coil Current 24 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating -
Must Operate Voltage 9 VDC
Must Release Voltage 1 VDC
Operate Time 1 ms
Release Time 1 ms
Temperature Range - Operating -20°C ~ 85°C
Contact Material -
Coil Resistance 500 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1373480-HE3351A1200
Ultra Librarian 3D Model Ultra Librarian HE3351A1200 CAD Model

Description

The HE3300 series from Littelfuse Inc. is a reed relay with a coil voltage of 12VDC.

  • Coil Voltage: 12VDC
  • Coil Type: Non-Latching
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 1A
  • Switching Voltage: 300VDC maximum
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 1VDC
  • Operate Time: 1ms
  • Release Time: 1ms
  • Coil Resistance: 500 Ohms
  • Mounting Type: Through Hole
  • Package: Tube
