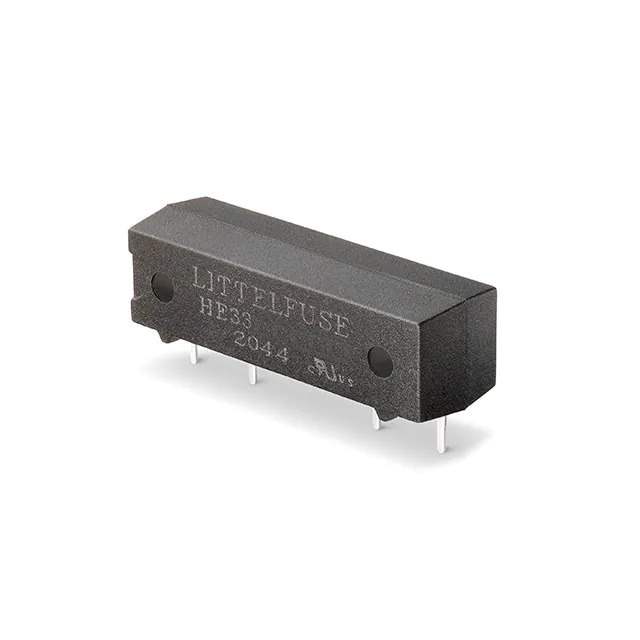

HE3321A1200 Real Image
Same model may have multiple batches, images only for reference.

HE3321A1200

Part No HE3321A1200
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED SPST 500MA 12V
Datasheet
HE3321A1200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Littelfuse Inc.
Series HE3300
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VDC - Max
Coil Current 24 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 9 VDC
Must Release Voltage 1 VDC
Operate Time 1 ms
Release Time 1 ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 500 Ohms
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 873485-HE3321A1200
Ultra Librarian 3D Model Ultra Librarian HE3321A1200 CAD Model

Description

The 873485-HE3321A1200 is a SPST-NO (1 Form A) reed relay from the HE3300 series.

  • Coil Resistance: 500 Ohms
  • Coil Current: 24 mA
  • Operate Time: 1 ms
  • Release Time: 1 ms
  • Coil Type: Non-latching
  • Coil Voltage: 12VDC
  • Contact Rating: 500 mA
  • Switching Voltage: 200VDC
  • Mounting Type: Through hole
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Littelfuse Inc.
  • Approval: cURus
