Same model may have multiple batches, images only for reference.

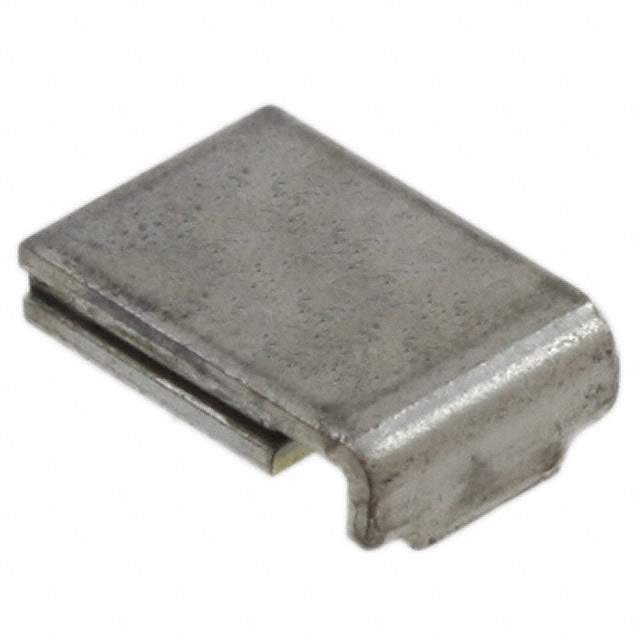

AHS300-2 Real Image
Same model may have multiple batches, images only for reference.

AHS300-2

Part No AHS300-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 3.0A SMD
Datasheet
AHS300-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 70A
Current - Hold (Ih) (Max) 3A
Current - Trip (It) 6A
Time to Trip 8s
Resistance - Initial (Ri) (Min) 24 mOhm
Resistance - Post Trip (R1) (Max) 83 mOhm
Temperature Range - Operating -40°C to 125°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.343" L x 0.250" W (8.70mm x 6.36mm)
Thickness (Max) 0.118" (3.00mm)
Win Source Part Number 1016377-AHS300-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AHS300-2 CAD Model

Description

The Littelfuse Inc. AHS300-2 is a polymeric type circuit protection device. Littelfuse Inc. AHS300-2

  • Type: Polymeric
  • Voltage Rating: 16V
  • Maximum Current Rating: 70A
  • Trip Current: 6A
  • Time to Trip: 8s
  • AEC-Q200 Rated: Yes
  • Mounting: SMD
  • Current Hold: 3A
  • Thickness: 0.118" (3.00mm)
  • Resistance (minimum): 24 mOhms
  • Post-Trip Resistance (maximum): 83 mOhms
  • Operating Temperature Range: -40°C to 125°C
