Same model may have multiple batches, images only for reference.

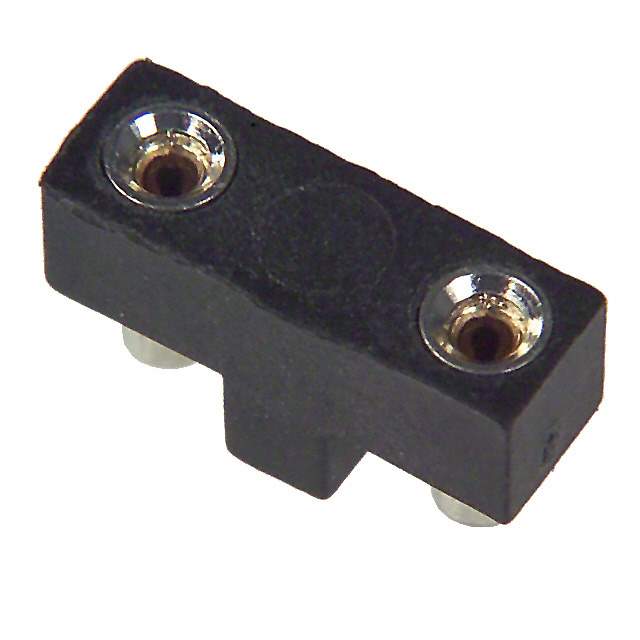

56400001009 Real Image
Same model may have multiple batches, images only for reference.

56400001009

Part No 56400001009
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER RADIAL 250V 6.3A SMD / Fuse Holder 6.3 A 250V 1 Circuit Radial Surface Mount
Datasheet
56400001009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 564
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Size Radial 0.2" (5.08mm) pitch
Current Rating (Amps) 6.3 A
For Use With/Related Products Radial Box, Can
Fuse Type Radial
Fuseholder Type Holder
Number of Circuits 1
Voltage 250V
Contact Material Copper Alloy
Contact Finish Tin
Standard Package 1,500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.8585
California Prop 65 Warning Information
Win Source Part Number 907483-56400001009
Ultra Librarian 3D Model Ultra Librarian 56400001009 CAD Model

Description

The 907483-56400001009 is a radial fuseholder from the 564 series by Littelfuse Inc.

  • Type: Radial Fuseholder
  • Series: 564
  • Fuse Type: Radial Box or Can Fuses
  • Contact Material: Tin Finish
  • Voltage Rating: 250V
  • Current Rating: 6.3A
  • Mounting Type: Surface Mountable
  • Package: Tape & Reel
  • Package Quantity: 1,500 pieces
  • Status: Active
  • Manufacturer: Littelfuse Inc.
