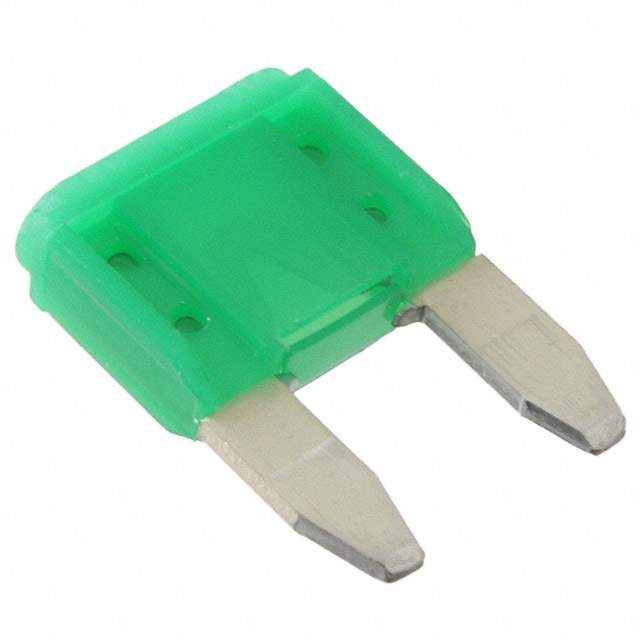

0297030.WXNV Real Image
Same model may have multiple batches, images only for reference.

0297030.WXNV

Part No 0297030.WXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 30A 32VDC BLADE MINI / MINI® BLADE FUSE RATED 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 30A
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package Blade, Miniature
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 1130
Temperature Range - Operating -40°C ~ 125°C
Color Green
Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 0.00185 Ohms
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801670-0297030.WXNV
Ultra Librarian 3D Model Ultra Librarian 0297030.WXNV CAD Model

Description

The 740000 is a fast-blow automotive fuse from Littelfuse Inc..

  • Voltage Rating: 32V DC
  • Current Rating: 30A
  • DC Cold Resistance: 0.00185 Ohms
  • Package: Blade, Miniature
  • Mounting: Holder
  • Dimensions: 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
  • Manufacturer Pack Quantity: 3,000
