Same model may have multiple batches, images only for reference.

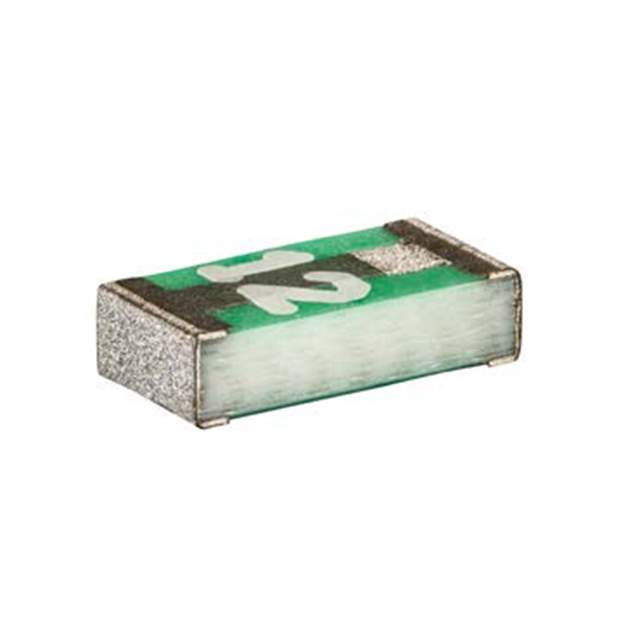

3413.0332.24 Real Image
Same model may have multiple batches, images only for reference.

3413.0332.24

Part No 3413.0332.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 25A 32VAC 63VDC / 25 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
3413.0332.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UST 1206
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 25 A
Voltage Rating - AC 32 V
Voltage Rating - DC 63 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 100A
Melting I2t 220
Approval Agency cURus
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
DC Cold Resistance 0.0013 Ohms
Base Product Number 3413.0332
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 5,000
Win Source Part Number 1124085-3413.0332.24
Ultra Librarian 3D Model Ultra Librarian 3413.0332.24 CAD Model

Description

The SCHURTER Inc. 3413.0332-1124085 is a board mount fuse that has a voltage rating of 32 V (AC) and 63 V (DC).

  • Voltage Rating: 32 V (AC) and 63 V (DC)
  • Breaking Capacity: 100A @ rated voltage
  • Melting I2t: 220
  • DC Cold Resistance: 0.0013 Ohms
  • Response Time: slow-blow
  • Series: UST 1206 series
  • Package: tape and reel
  • Mounting: SMD (SMT)
  • Package/Case Size: 1206 (3216 Metric)
  • Operating Temperature: -55°C to 90°C
  • Ideal for: various electronic devices that require a voltage rating of 32 V (AC) and 63 V (DC)
