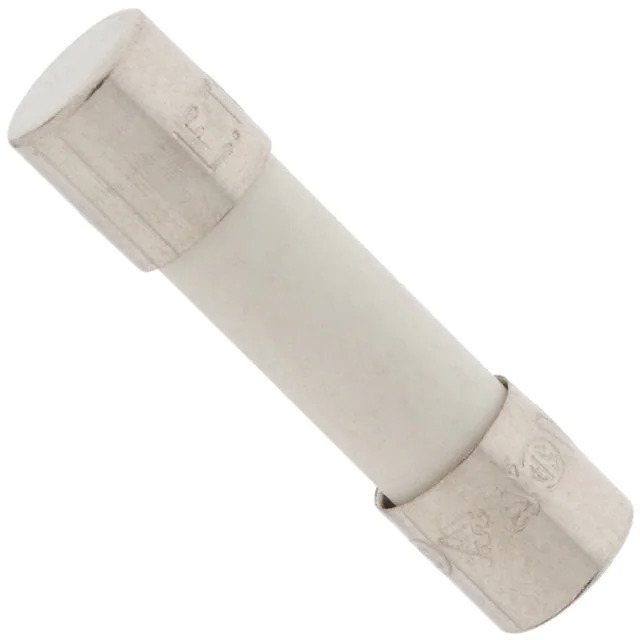

0234006.MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0234006.MXP

Part No 0234006.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 6A 250VAC 5X20MM / 6 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 234
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 6 A
Voltage Rating - AC 250 V
Response Time Medium Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 200A
Melting I²t 33.015
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0194 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361399-0234006.MXP
Ultra Librarian 3D Model Ultra Librarian 0234006.MXP CAD Model

Description

The 1361399-0234006.MXP is a cartridge ceramic fuse from Littelfuse Inc.

  • Series: 234
  • Package Size: 5mm x 20mm
  • Response Time: Medium Blow
  • Current Rating: 6 A
  • Voltage Rating: 250 V AC
  • Breaking Capacity: 200A @ Rated Voltage
  • Melting I²t: 33.015
  • DC Cold Resistance: 0.0194 Ohms
  • Mounting: Holder Required
  • Approvals: CE, CSA, K-MARK, PSE, UL
  • Temperature Range: -55°C to 125°C
