Same model may have multiple batches, images only for reference.

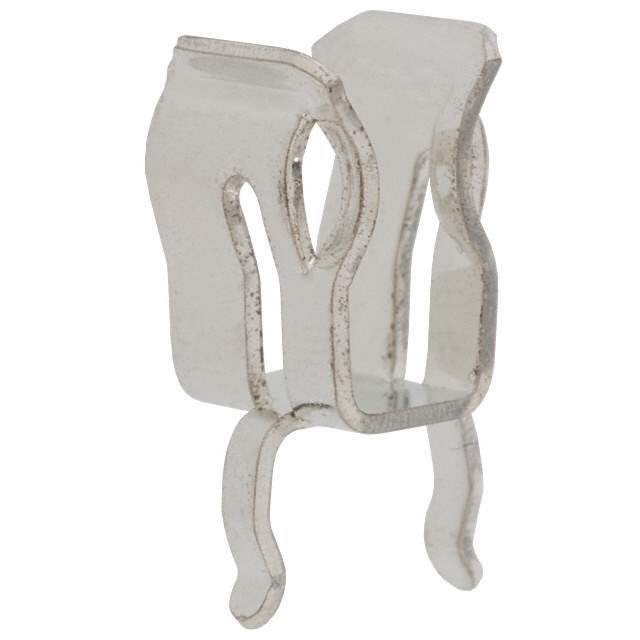

01110501Z Real Image
Same model may have multiple batches, images only for reference.

01110501Z

Part No 01110501Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CARTRIDGE 250V 10A PCB / Fuse Blocks and Clips - For 3AG Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Clip
Fuse Type Cartridge
For Use With/Related Products 5mm Dia
Fuse Size 5mm Dia
Number of Circuits 1
Voltage 250V
Current Rating (Amps) 10A
Mounting Style Through Hole
Orientation Horizontal
Termination Style PC Pin
Contact Material Spring Brass
Contact Finish Tin
Manufacturer Pack Quantity 2,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803511-01110501Z
Ultra Librarian 3D Model Ultra Librarian 01110501Z CAD Model

Description

The Littelfuse Inc. 01110501Z is a fuseholder clip manufactured by Littelfuse Inc.

  • Fuse Diameter: 5mm
  • Mounting: Through Hole
  • Termination: PC pin
  • Contact Material: Spring Brass
  • Contact Finish: Tin
  • Fuse Size: 5mm diameter
  • Voltage Rating: 250V
  • Popularity: Medium
  • Supply and Demand Status: Balanced
