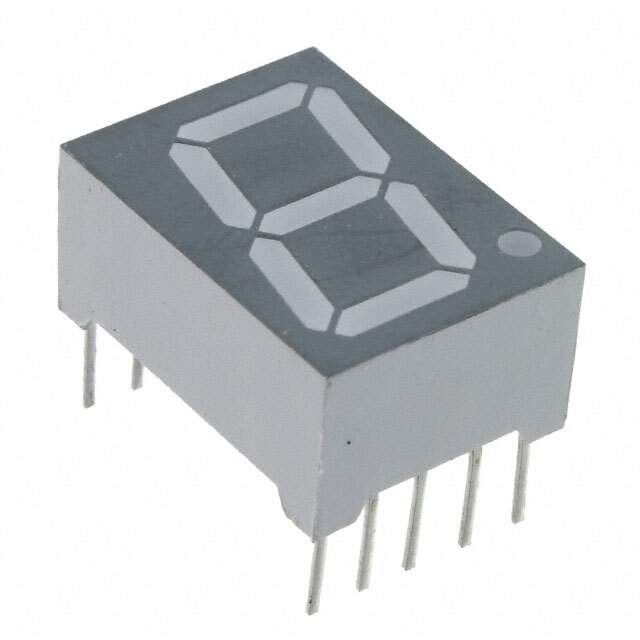

LTS-5003AWC Real Image
Same model may have multiple batches, images only for reference.

LTS-5003AWC

Part No LTS-5003AWC
Manufacturer Lite-On Inc.
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL RED 10DIP / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.7V 5mA 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) 10-DIP (0.600", 15.24mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Lite-On Inc.
Package Tube
Number of Characters 1
Dimension 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 1.7V
Current - Test 5mA
Millicandela Rating 3.75mcd
Wavelength - Peak 660nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number LTS-5003
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Other Names Q1159490
Standard Package 40
Win Source Part Number 1072845-LTS-5003AWC
Ultra Librarian 3D Model Ultra Librarian LTS-5003AWC CAD Model

Description

The LTS-5003AWC is a 7-segment display module with a common cathode pin.

  • Pin Type: Common cathode
  • Digit/Alpha Size: 0.56 inches
  • Millicandela Rating: 3.75mcd
  • Display Type: 7-segment
  • Number of Characters: 1
  • Forward Voltage (Vf): 1.7V
  • Power Dissipation (Max): 75mW
  • Package/Case: 10-DIP (0.600 inches, 15.24mm)
  • Dimension: 0.673 inches H x 0.488 inches W x 0.315 inches D (17.10mm x 12.40mm x 8.00mm)
  • Application: Optoelectronics and display modules - LED character and numeric
