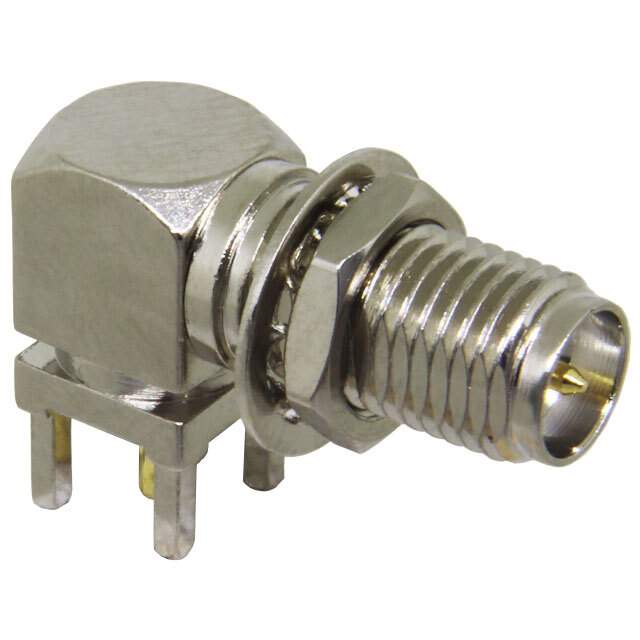

CONREVSMA002-L Real Image
Same model may have multiple batches, images only for reference.

CONREVSMA002-L

Part No CONREVSMA002-L
Manufacturer Linx Technologies Inc.
Catalog Coaxial Connectors (RF)
Description CONN RP-SMA RCPT R/A 50 OHM PCB / RP-SMA Connector Receptacle, Male Pin 50Ohm Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Linx Technologies Inc.
Package Bulk
Connector Style RP-SMA
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Silver
Center Contact Material Brass
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number CONREVSMA002
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Other Names Q8121442,CONREVSMA002L
Standard Package 200
Win Source Part Number 1232185-CONREVSMA002-L
Ultra Librarian 3D Model Ultra Librarian CONREVSMA002-L CAD Model

Description

The Linx Technologies Inc. CONREVSMA002-L is an RP-SMA coaxial connector that has a male pin receptacle and a threaded fastening type.

  • Connector Type: RP-SMA Coaxial
  • Pin Gender: Male
  • Fastening Type: Threaded
  • Package: Standard Package of 200
