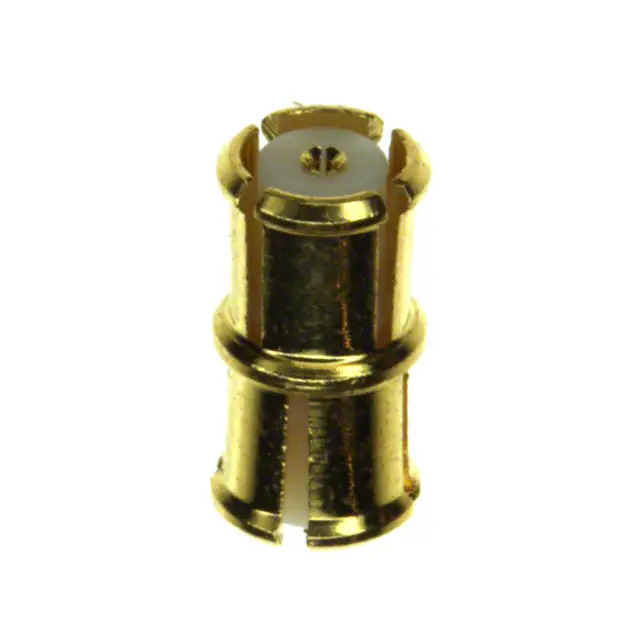

SMP-FSBA-645 Amphenol-RF Division
Same model may have multiple batches, images only for reference.

SMP-FSBA-645

Part No SMP-FSBA-645
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN ADAPT PLUG-PLUG SMP 50 OHM / Adapter Coaxial Connector SMP Plug, Female Socket To SMP Plug, Female Socket 50Ohm
Datasheet
SMP-FSBA-645 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Adapters
Mfr Amphenol RF
Series -
Package Bulk
Product Status Active
Adapter Type Plug to Plug
Conversion Type Same Series
Adapter Series SMP to SMP
Center Gender Female to Female
Convert From (Adapter End) SMP Plug, Female Socket
Convert To (Adapter End) SMP Plug, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Snap-On, Snap-On
Frequency - Max 26.5 GHz
Ingress Protection -
Center Contact Plating Gold
Features -
Includes -
Body Material Beryllium Copper
Body Finish Gold
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 100
Insertion Loss -
Temperature Range - Operating -65°C ~ 165°C
Base Product Number SMP-FSBA
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365242-SMP-FSBA-645
Ultra Librarian 3D Model Ultra Librarian SMP-FSBA-645 CAD Model

Description

The Amphenol RF SMP-FSBA is a coaxial connector adapter designed for RF applications.

  • Style: Straight
  • Fastening Type: Snap-On
  • Impedance: 50 Ohm
  • Frequency: Up to 26.5 GHz
  • Body Material: Beryllium Copper
  • Center Contact Material: Beryllium Copper
  • Finish: Gold
  • Temperature Range: -65°C to 165°C
